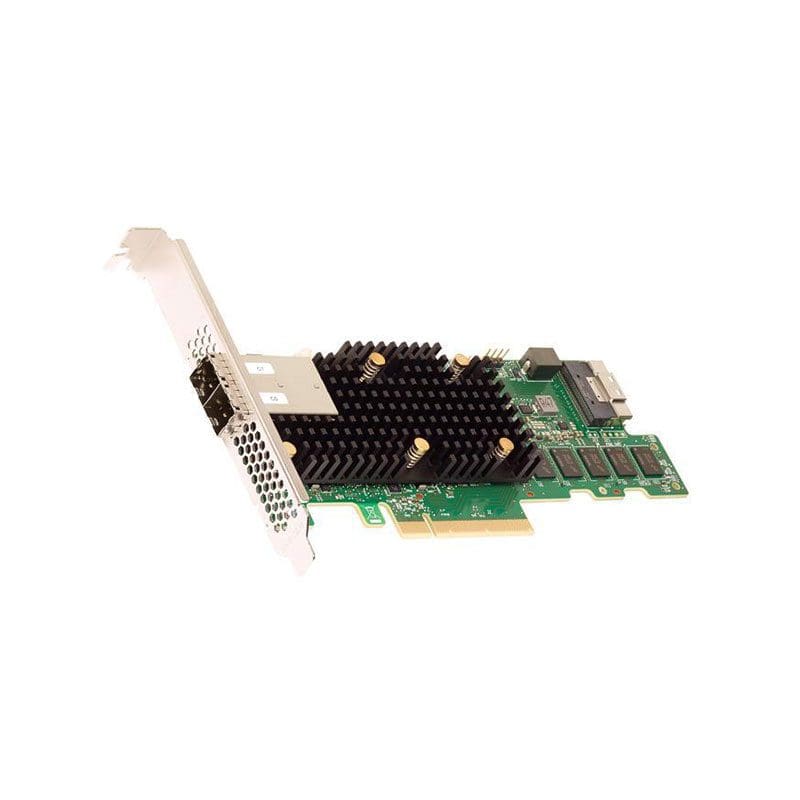

SAS9580-8I8E Technical Specifications
BROADCOM Megaraid 9500 Pcie Gen 4.0 Tri-mode Storage Adapter
Port Count 8 Internal, 8 Externa
Connectors One X8 Sff-8654 2 X4 Sff-8644
Host Interface X8 Pcie Gen 4.0
Storage Interface 12gb/s Sas, 6gb/s Sata, Gen 4.0 Pcie (nvme)
Raid On Chip Controller(roc) Sas3916
Max Devices Per Controller Sas/sata: 240nvme: 32
Cache Size 8 Gb
Cache Protection Cachevault, Cvpm05
