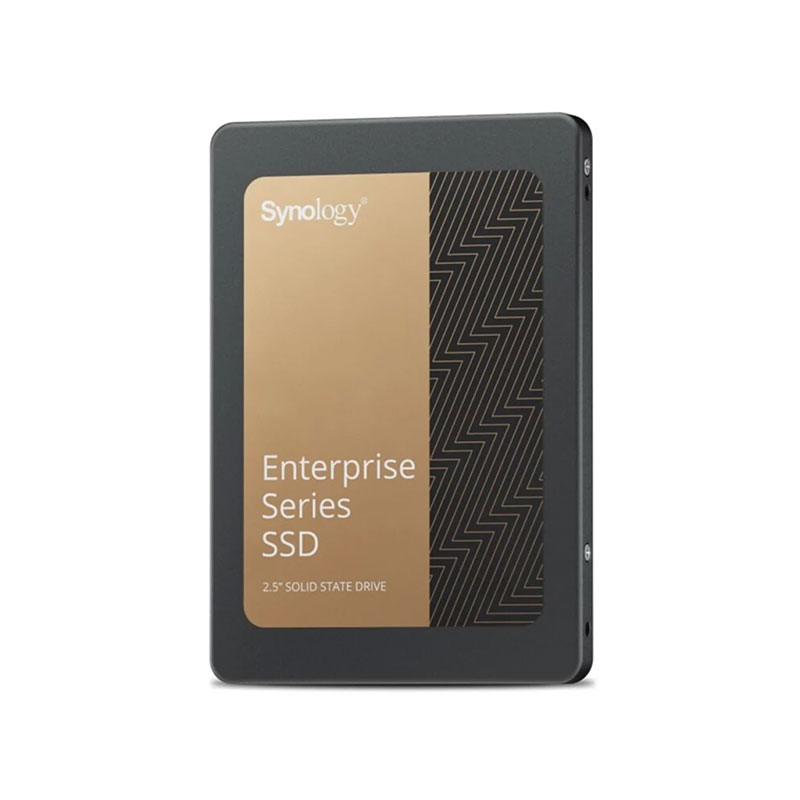

SAT5220-960G Synology Enterprise 960 GB SATA 6Gb/s Solid State Drives

SAT5220-960G Overview

The Synology SAT5220‑960G is a 960 GB enterprise‑class internal solid‑state drive (SSD) built for 24×7 professional use in NAS systems, servers, and business storage applications that utilize the SATA 6 Gb/s (SATA III) interface. It comes in a standard 2.5‑inch, 7 mm form factor, making it broadly compatible with enterprise and NAS enclosures that support SATA drives.
This SSD delivers SATA‑level performance, with sustained sequential read speeds up to about 530 MB/s and write speeds around 500 MB/s, which are near the maximum limits of the SATA interface. It also offers strong random I/O performance, such as up to 98,000 IOPS for 4 KB random reads and 44,000 IOPS for 4 KB random writes.

$649

Buy Now
Availability: In Stock
SKU:SAT5220-960G
Brand:

SAT5220-960G Technical Specifications

Synology Enterprise 960 GB SATA 6Gb/s Solid State Drives

Type: Hard Drive – Internal
Capacity : 960 Gb
Form Factor : 2.5 7mm
Interface : Sata 6gb/s
Dimensions : 7 Mm X 69.85 Mm X 100 Mm
Performance :
Sustained Sequential Read : 530 Mb/s
Sustained Sequential Write : 500 Mb/s
Sustained Random Read : 98,000 Iops
Sustained Random Write : 44,000 Iops
Endurance And Reliability :
Terabytes Written Tbw : >1,700 Tb
Mean Time Between Failures (mtbf) : 1,500,000 Hours
Uncorrectable Bit Error Rates (uber) : <1 Sector Per 1017 Bits Read
Power Loss Protection: Yes
Power Consumption :
Active Read : 2.3 W
Active Write : 3.2 W
Idle : 1.3 W
