SB5PH27X019T001 Technical Specifications

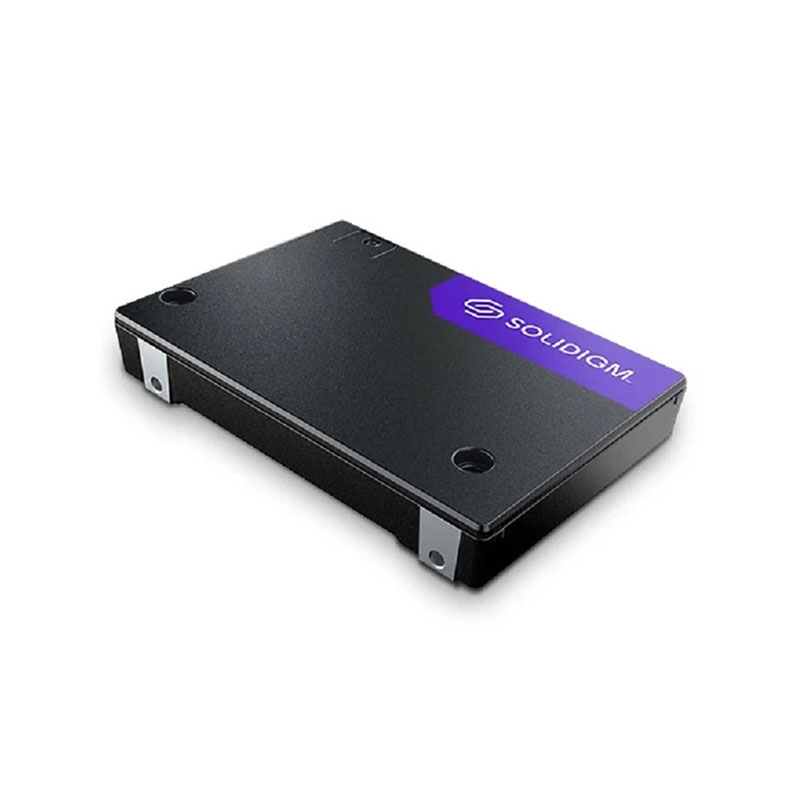

Solidigm D7-PS1010 Series 1.92TB PCI Express 5.0 x4 NVMe 2.5-inch Internal Solid State Drive (SSD)
Manufacturer : SOLIDIGM
Manufacturer Part : SB5PH27X019T001
Product Series : D7-ps1010
Technical Information :
Storage Capacity : 1.92 Tb
Interface Type : Pcie 5.0 X4, Nvme
Form Factor : U.2 15 Mm
Lithography : 176l Tlc 3d Nand
Endurance Rating : Standard Endurance (se)
Shock : 1000 G/0.5 Msec
Mtbf : 2.5 Million Hours
Performance :
Sequential Bandwidth – 100% Read (up To) : 14500 Mb/s
Sequential Bandwidth – 100% Write (up To) : 4100 Mb/s
Random Read (100% Span) : 2350000 Iops (4k Blocks)
Random Write (100% Span) : 150000 Iops (4k Blocks)
Power – Active : 23w
Power – Idle : 5w
