SBFPF2BV153T001 Technical Specifications

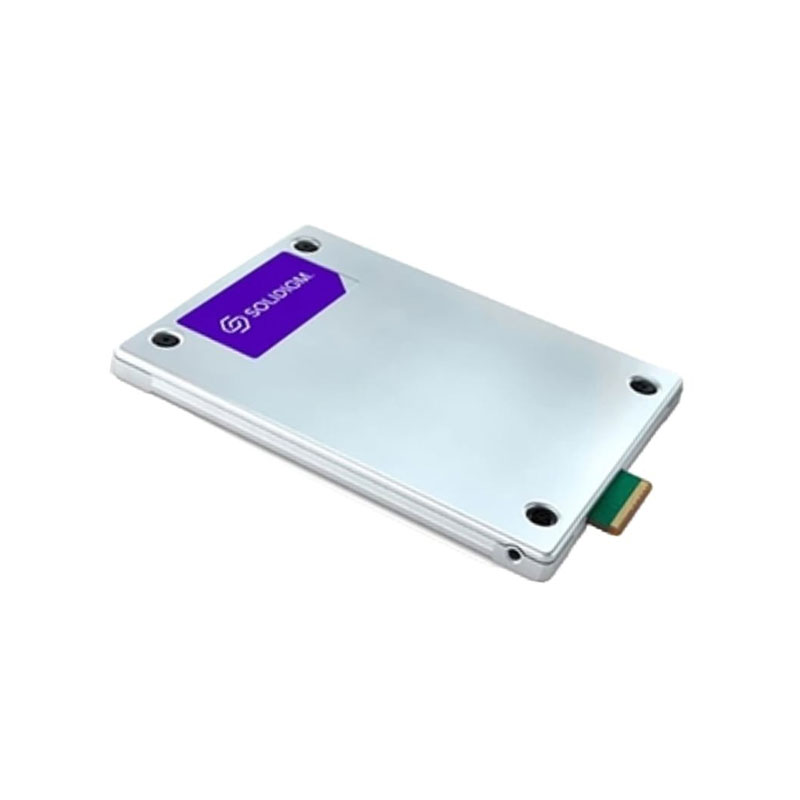

Solidigm D5-P5336 15.36 Terabytes (TB) Peripheral Component Interconnect Express (PCI-E) 4.0 X4 U.2 15mm 3d5 Qlc Generic No Opal 2.5-inch Solid State Drive
Manufacturer: Solidigm
Part Number or SKU# SBFPF2BV153T001
Product Type: Solid State Drive (SSD)
Interface Type: PCIe 4.0 x4, NVMe
Technical Information for PCIe 4.0 x4, NVMe SSD
Storage Capacity: 15.36 Terabytes
Form Factor: U.2 15mm
Lithography: 3D5
Use Conditions: Server/Enterprise
Performance
Sequential Bandwidth – 100% Read (Up to): 7000 Megabytes per second
Sequential Bandwidth – 100% Write (Up to): 3000 Megabytes per second
Random Read (100% Span): 1005000 I/O operations per second (4K, QD256)
Random Write (100% Span): 29900 I/O operations per second (16K, QD256)
Reliability
Vibration – Operating: 2.17 Grms (5 – 700 Hz) Max
Vibration – Non-Operating: 3.13 Grms (5 – 800 Hz) Max
Shock (Operating and Non-Operating): 1000g (0.5ms)
Operating Temperature Range: 0°C to 70°C
Mean Time Between Failures (MTBF): 2 Million Hours
