SBFPF2BV614T001 Technical Specifications

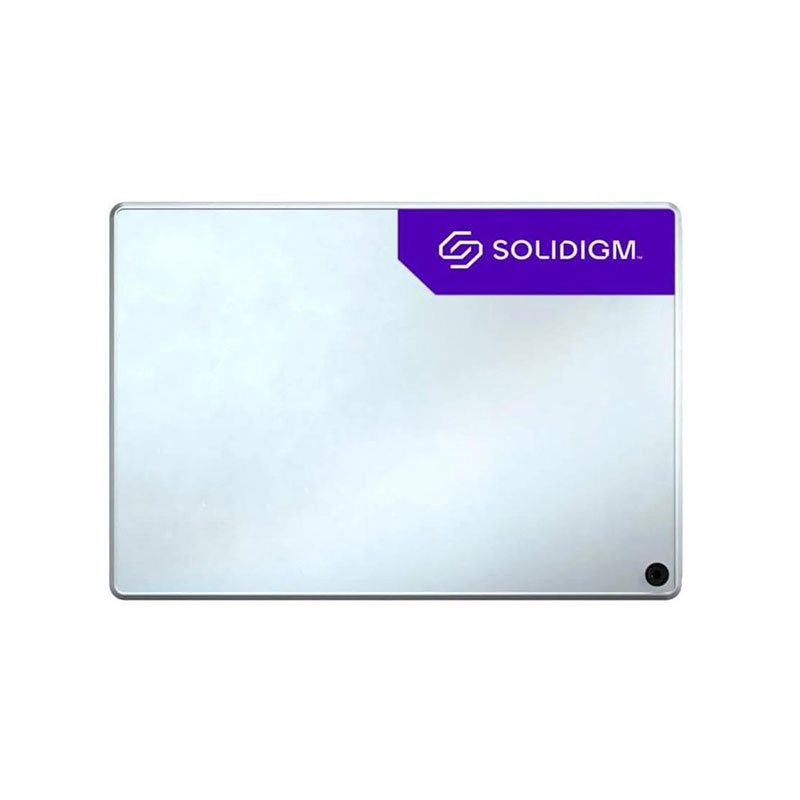

Solidigm D5-P5336 61.44TB PCI Express 4.0 x4 U.2 No Opal 2.5-inch Internal Solid State Drive (SSD)
Manufacturer: Solidigm
Model Number or SKU# SBFPF2BV614T001
Product Type: Solid State Drive
Interface Type: PCIe 4.0 x4, NVMe
Product Series: D5-p5336
Technical information for PCIe 4.0 x4, NVMe SSD
Storage Capacity: 61.44TB
Form Factor: U.2 15mm
Lithography: 3D5
Use Conditions: Server/Enterprise
Performance
Sequential Bandwidth – 100% Read (Up to): 7000 MB/s
Sequential Bandwidth – 100% Write (Up to): 3000 MB/s
Random Read (100% Span): 1,005,000 IOPS (4K, QD256)
Random Write (100% Span): 42,600 IOPS (16K, QD256)
Reliability
Vibration – Operating: 2.17 Grms (5 – 700 Hz) Max
Vibration – Non-Operating: 3.13 Grms (5 – 800 Hz) Max
Shock (Operating and Non-Operating): 1000g (0.5ms)
Operating Temperature Range: 0°C to 70°C
