SBFPFABV076T001 Technical Specifications

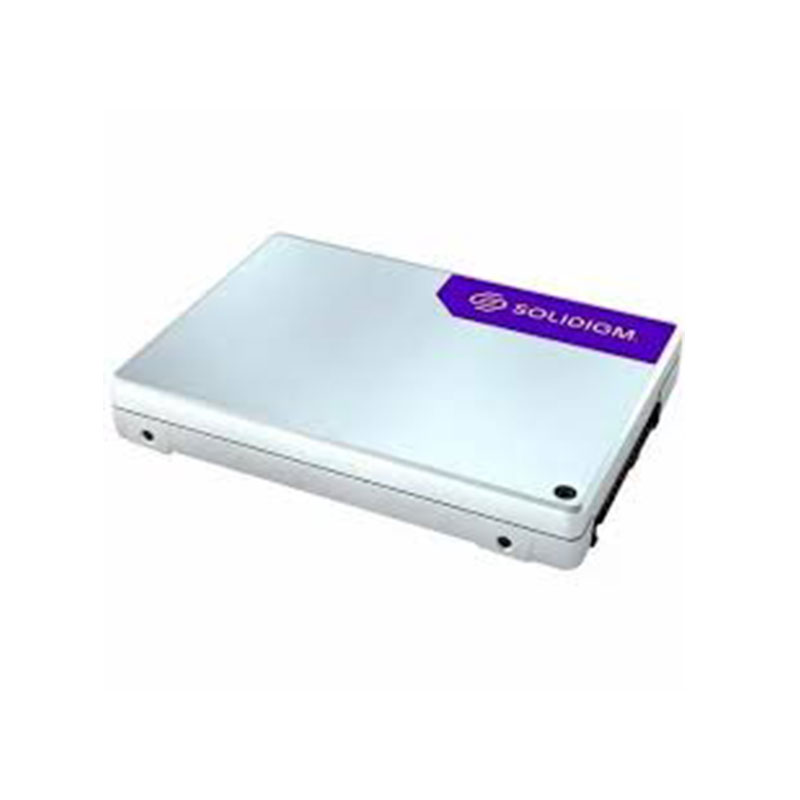

Solidigm D5-P5336 7.68TB 24TB PCIe 4.0 x4 NVMe Solid state Drive
Capacity: 7.68 TB
Form Factor: U.2 15 mm / E3.S 7.5 mm
Interface: PCIe 4.0 x4, NVMe
NAND: 192‑Layer QLC 3D
Drive Type: Enterprise SSD
Performance
Sequential Read: ~7000 MB/s
Sequential Write: ~3300 MB/s
Random Read: ~1,000,000 IOPS
Random Write: ~40,000–50,000 IOPS
Power & Endurance
Active Power: ~25 W
Idle Power: <5 W
Endurance: ~0.42 DWPD
Reliability
MTBF: ~2,000,000 hours
UBER: <1 per 10¹⁷ bits
Environment
Operating Temp: 0 °C–70 °C
Shock: ~1000 G
Vibration: ~2.17 GRMS (operating) / ~3.13 GRMS (non‑operating)
