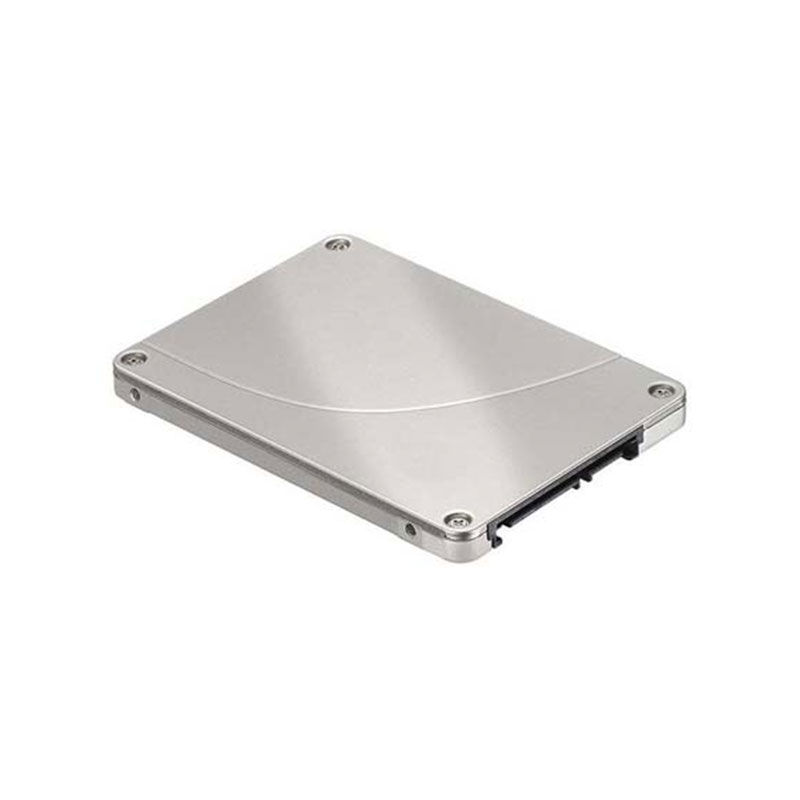

SDFHQ65DAB02T KIOXIA 1.6TB PCI E NVMe Solid State Drive
SDFHQ65DAB02T Overview
The Kioxia SDFHQ65DAB02T is a high‑performance enterprise NVMe solid‑state drive from the Kioxia CM6 Series, designed for mixed‑use workloads in data centers, servers, and enterprise storage environments. It uses a PCI Express 4.0 x4 interface with the NVMe 1.4 protocol over a 2.5‑inch, 15 mm U.3 form factor — a standard format for modern hot‑swappable enterprise SSDs that fits most server and storage chassis.
Equipped with 1.6 terabytes of storage and 96‑layer BiCS FLASH™ TLC NAND memory, this drive delivers very fast sequential performance, with up to approximately 6,900 MB/s read and around 2,800 MB/s write speeds over PCIe 4.0, making it well‑suited for large file transfers and bulk data operations. It also offers high random I/O.
SDFHQ65DAB02T Technical Specifications
KIOXIA CM6 1.6TB Triple-Level Cell PCI Express NVMe 4.0 SFF 2.5-Inch Solid State Drive
Type : Solid State Drive – Internal
Capacity : 1.6 Tb
Flash Memory Type : Bics Flash Tlc
Form Factor : 2.5
Interface : Pci Express 4.0 (nvme)
Performance :
Sustained 128 Kib Seq. Read : 6900 Mb/s
Sustained 128 Kib Seq. Write : 2800 Mb/s
Sustained 4 Kib Seq. Read : 1300000 Iops
Sustained 4 Kib Seq. Write : 215000 Iops
Reliability :
Mttf : 2500000 Hours
Dwpd : 3
Expansion & Connectivity :
Interfaces : 1 X Pci Express 4.0 (nvme)
