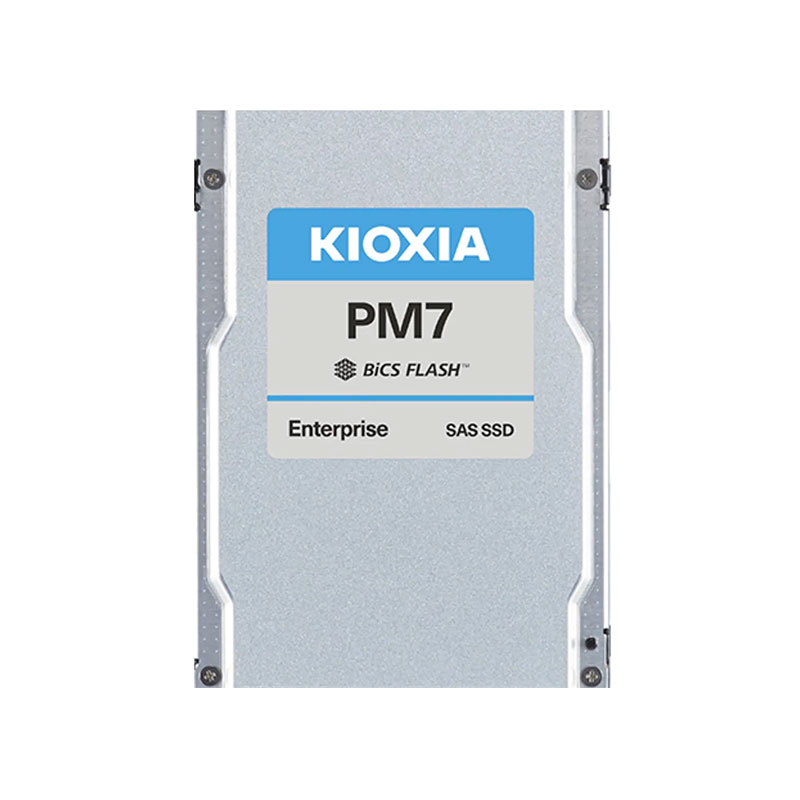

SDFU085DHB01T KIOXIA 1.92TB SAS 24Gb/s Solid State Drive
SDFU085DHB01T Overview
The KIOXIA PM7‑R 1.92TB SAS 24Gb/s SIE Read Intensive SSD is an enterprise‑grade read‑intensive SAS solid‑state drive from the KIOXIA PM7‑R Series designed for demanding server and storage system workloads. It uses a 24 Gb/s SAS‑4 interface in a 2.5‑inch, 15 mm form factor with dual‑port support, providing high availability and redundant data paths for mission‑critical environments. The drive is built with 112‑layer BiCS FLASH™ TLC NAND, delivering strong sequential and random performance — typically up to about 4,200 MB/s for sequential reads, ~3,400 MB/s for sequential writes, and up to approximately 720,000 IOPS random read with ~155,000 IOPS random write in dual‑port mode — helping ensure responsive data access for read‑heavy workloads.
SDFU085DHB01T Technical Specifications
KIOXIA PM7-R 1.92TB Triple-Level Cell SAS 24Gb/s Read Intensive SIE 2.5-In Enterprise Solid State Drive
Manufacturer : KIOXIA
Manufacturer Model : SDFU085DHB01T
Product Type : Hard Disk Drive
Main Specifications :
Type : Solid State Drive – Internal
Capacity : 1.92 Tb
Nand Flash Memory Type : Bics Flash Tlc
Form Factor : 2.5
Interface : Sas 24gb/s
Dimensions (wxdxh) : 15mm X 69.85mm X 100.45mm
Weight : 150 G
Extended Specifications :
Capacity : 1.92 Tb
Nand Flash Memory Type : Bics Flash Tlc
Form Factor : 2.5
Performance :
Sustained 128 Kib Sequential Read : 4,200 Mb/s
Sustained 128 Kib Sequential Write : 3,400 Mb/s
Sustained 4 Kib Random Read : 720k Iops
Sustained 4 Kib Random Write : 155k Iops
Reliability :
Mttf : 2500000 Hours
Dwpd : 1 Dwpd
