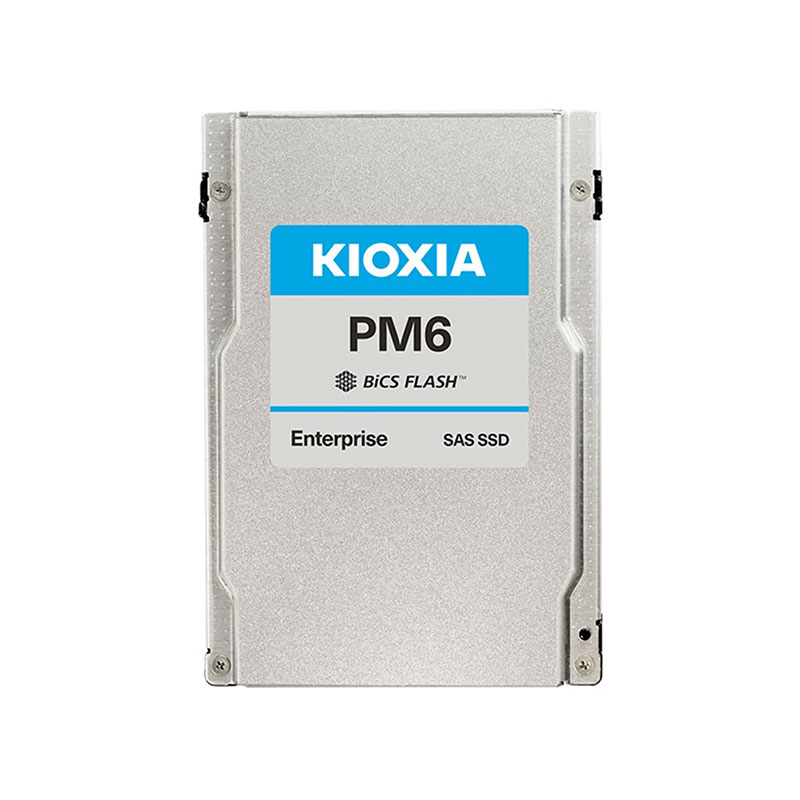

SDFUS76EXB02T Kioxia 960GB SAS 12Gb/s 2.5-Inch Solid State Drive
SDFUS76EXB02T Overview
The KIOXIA SDFUS76EXB02T, part of the PM6‑R series, is a 960 GB enterprise‑grade solid‑state drive (SSD) designed for data center and server environments that need robust, high‑throughput storage with SAS 12 Gb/s (SAS‑4) interface support. It comes in a 2.5‑inch, 15 mm form factor with hot‑plug capability, making it compatible with enterprise systems, storage arrays, and servers that accept SAS drives of this size. .
This SSD is built with KIOXIA’s BiCS FLASH™ 3D TLC NAND technology, providing a balance of performance, durability, and cost‑effective capacity suited for read‑intensive workloads—such as web servers, data warehousing, content delivery systems, and boot volumes—where frequent reading operations dominate.
SDFUS76EXB02T Technical Specifications
Kioxia PM6-R 960GB SAS 12Gb/s Read Intensive SED 2.5-Inch Solid State Drive
Manufacturer : KIOXIA
Manufacturer Part Number : SDFUS76EXB02T
Product Series : Pm6-r
Product Type : Solid State Drive
Technical Information :
Type : Solid State Drive – Hot-plug
Capacity : 960gb
Nand Flash Memory Type: Bics Flash™ Tlc
Form Factor : 2.5-inch, 15 Mm Thickness
Interface Type : Sas-4
Interface Speed : 12gbps
Features : Read-intensive Endurance, Advanced Format 512e
Performance :
Sustained 128 Kib Sequential Read : 4,150 Mb/s
Sustained 128 Kib Sequential Write : 1,450 Mb/s
Sustained 4 Kib Random Read : 595k Iops
Sustained 4 Kib Random Write : 75k Iops
Mttf : 2,500,000 Hours
Dwpd : 1
Expansion & Connectivity :
Interfaces : 1 X Sas 12 Gb/s
