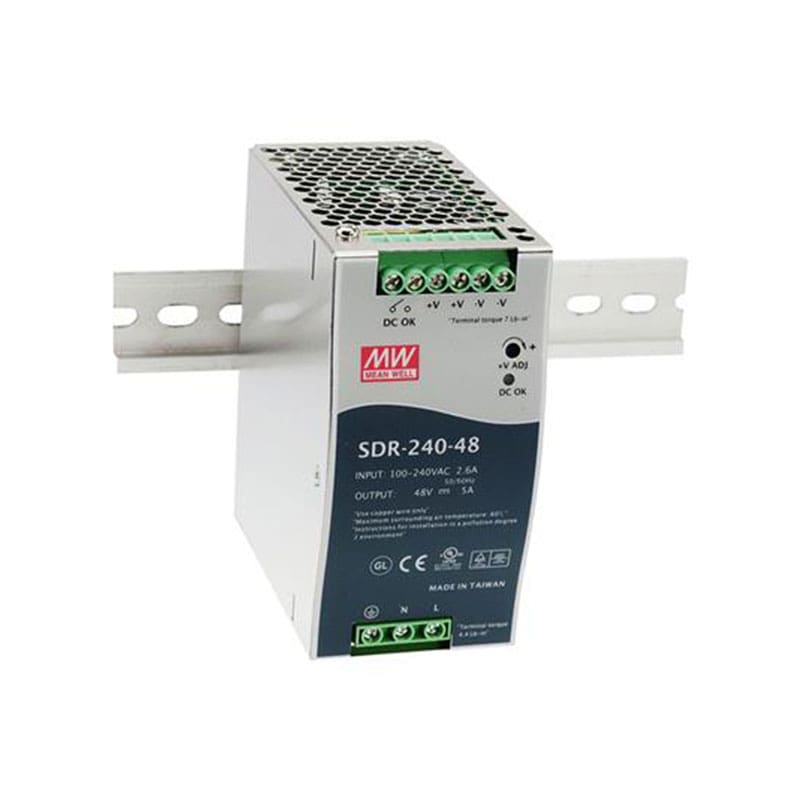

SDR-240-48 Technical Specifications
MEAN WELL Series DIN Rail Industrial – 240W, 48VD Power Supply
Manufacture: MEAN WELL
Condition: New
Brand: MEAN WELL
Part number: SDR-240-48
Series: SDR-240
Technology: AC/DC
Power Format: DIN rail
Output Power (W): 240
Output Voltage (V): 48
Output Current (A): 5
Input Voltage (V): 110/230 universal input , 88 – 264
IP Rating: No IP assigned
Efficiency: 94
Width (mm): 63
Height (mm): 125.2
Depth (mm): 113.5
Control Signals: DC OK
Net weight (gram): 1102.5
RoHS: Compliant
Indication: LED optical indication
