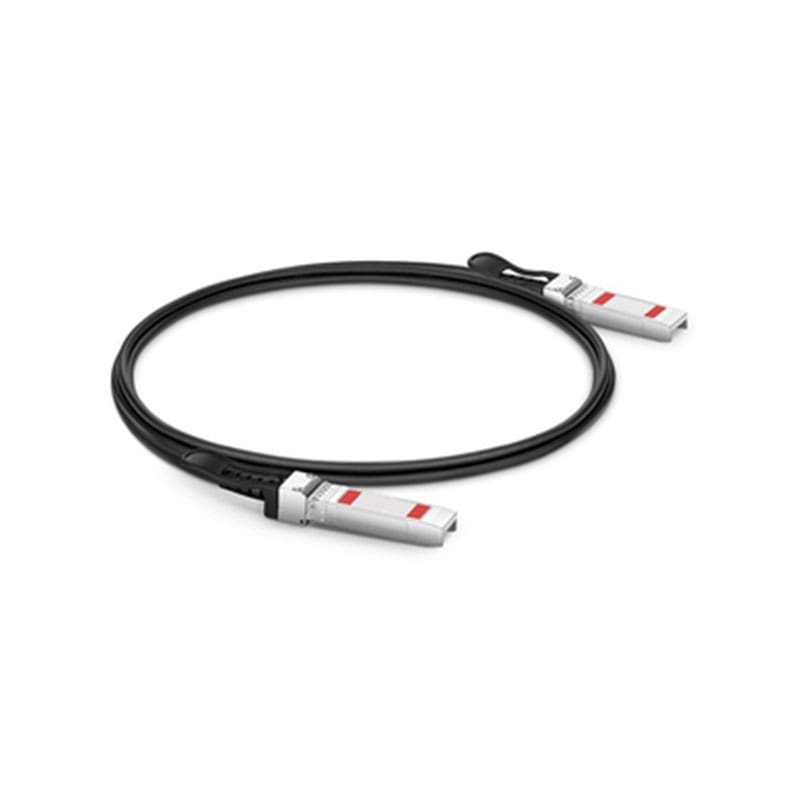

SFP-10G-AOC1M= Cisco 1 Meter 10Gbase Active Optical SFP+
SFP-10G-AOC1M= Overview
The SFP-10G-AOC1M= Cisco Active Optical Cable Assembly is a high-speed, cost-effective interconnect solution for connecting 10 Gigabit Ethernet devices. It is an active optical cable (AOC) that uses a combination of optical and electrical signaling to provide 10 Gigabit Ethernet connectivity.
The part is a 1 meter long cable assembly that connects to the SFP+ ports on your 10 Gigabit Ethernet devices. It uses a small form-factor pluggable (SFP+) transceiver on each end of the cable to provide the necessary electrical and optical signaling for 10 Gigabit Ethernet connectivity.
SFP-10G-AOC1M= Technical Specifications
Cisco 1 Meter 10Gbase Active Optical Small Form-Factor Pluggable Plus (SFP+) Cable
Manufacturer: Cisco
Model Number or SKU# SFP-10G-AOC1M=
Product Name: Active Optical Cable Assembly
Product Type: Network Cable
Technical Information for Active Optical Cable Assembly
Cable Type: Fiber Optic-1 Meter
Cable Length: 3.28 ft
Connector on First End: 1 x SFF-8431 SFP+
Connector on Second End: 1 x SFF-8431 SFP+
Device Supported: Network Device
Connectivity of 1 Meter Cable
Connector: SFP+ – male
Connector (Second End):SFP+ – male
Product Features
Support for multi-gigabit data rates up to 10.5Gbps
Support 4x and 8x Fibre Channel data rates
Hot-pluggable SFP 20PIN footprint
Hot Pluggable, lightweight cable, the small bending radius
850nm high-speed VCSEL and PIN receiver
Single 3.3V power supply
Compatible to SFP+ MSA
Operating temperature range: 0 to 70°C
RoHS Compliant and Lead-Free
