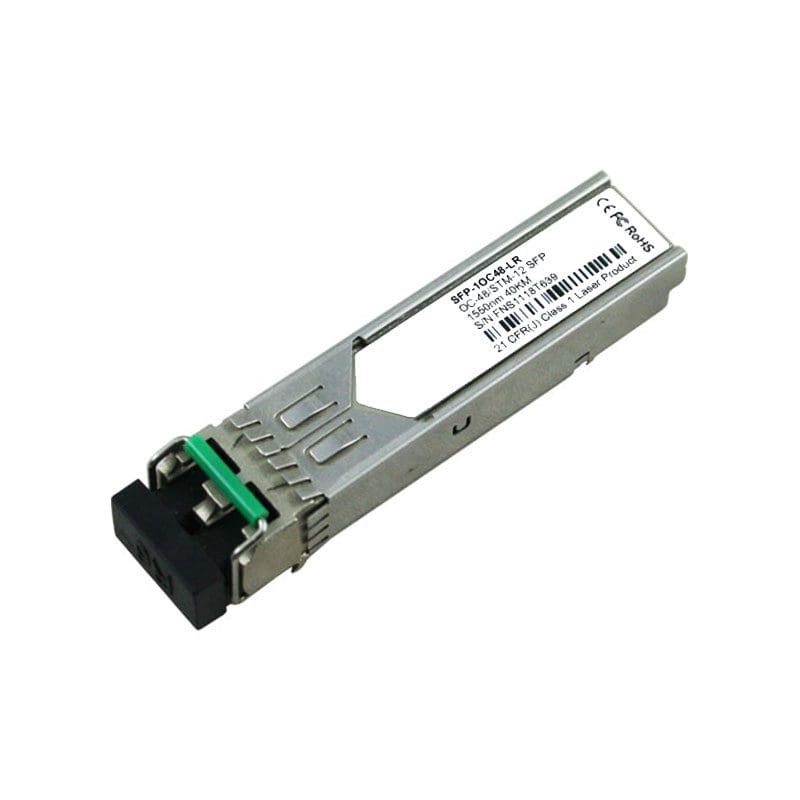

SFP-1OC48-LR Juniper-SFP Pluggable Single Mode Optic Module

SFP-1OC48-LR Technical Specifications

Juniper-Sfp Pluggable Single Mode Optic Module Intermediate Reach,1 X Oc-48/Stm-16

General Information
Manufacturer Juniper Networks, Inc
Manufacturer Part Number SFP-1OC48-LR
Brand Name Juniper
Product Name SFP Pluggable Single Mode Optic Module Long Reach
Product Type SFP
Technical Information
Application/Usage Data Networking
Interfaces/Ports
Interfaces/Ports 1 x OC-48/STM-16
Interfaces/Ports Details 1 x LC Duplex OC-48/STM-16
Media & Performance
Connectivity Media Single-mode Optical Fiber(SMF)
Data Transfer Rate 2.48 Gbps OC-48/STM-16
Miscellaneous
Additional Information Length: 49.7 miles / 80 km
Wavelength: 1,500 to 1,580 nm
Average launch power: -2 to +3 dBm
Receiver saturation: -9 dBm
Receiver sensitivity: -28 dBm
Compatibility
Juniper 1-port and 4-port OC-48c/STM-16 PICs with SFP
Operating Temperature (range): –10° C to 70° C
Storage temperature: –40° C to 85° C
