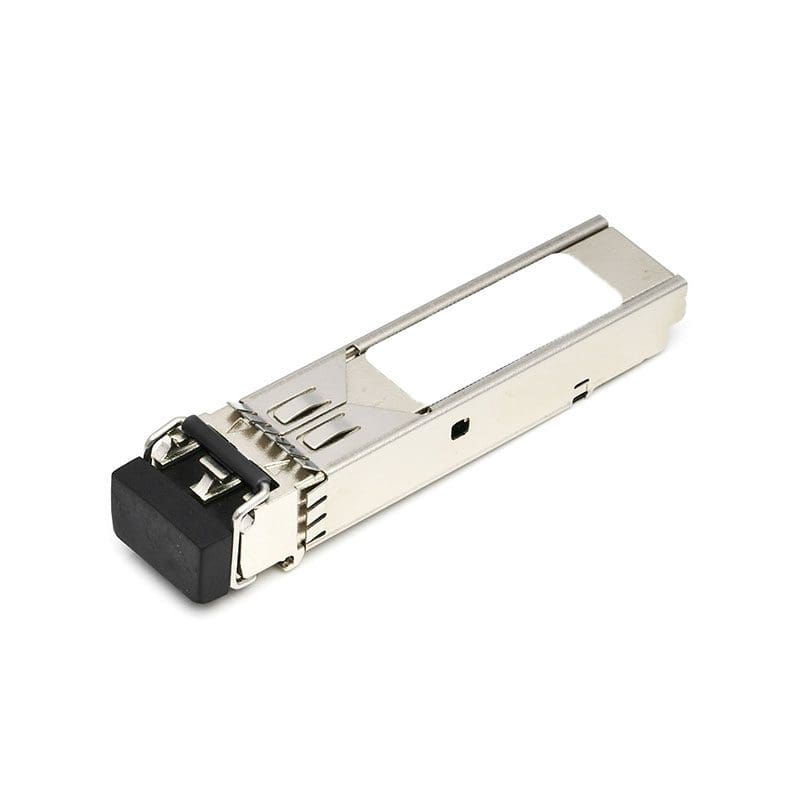

SFPP-10GE-SR-IT Juniper Networks SFP+ 10GE-SR MMF 1.0W

SFPP-10GE-SR-IT Technical Specifications

Juniper Networks SFP+ 10GE-SR MMF 1.0W Beige Bail

Product Name: SFP+ 10GE-SR MMF 1.0W Beige Bail
Manufacturer Part Number: SFPP-10GE-SR-IT
Product Type: SFP+
Ethernet Technology: 10 Gigabit Ethernet
Media Type: Supported Optical Fiber
Network Technology: 10GBase-SR
Environmentally Friendly: Yes
Fiber Mode Supported: Multi-mode
Interfaces / Ports Details: 1 x 10GBase-SR Network
Digital Diagnostic Monitoring: Transceiver Temperature, Transceiver Supply Voltage, Tx Bias Current, Tx output power, Rx received optical power
Signaling rate, each lane: 10GBASE-SR: 10.3125 GBd ± 100 ppm: 10GBASE-SW: 9.95328 GBd ± 20 ppm
Transmitter fibers: 1
Transmitter wavelengths (range): 840 nm to 860 nm
Receive lane wavelengths (range): 840 nm to 860 nm
Transmitter RMS spectral width (maximum): 0.45 nm
