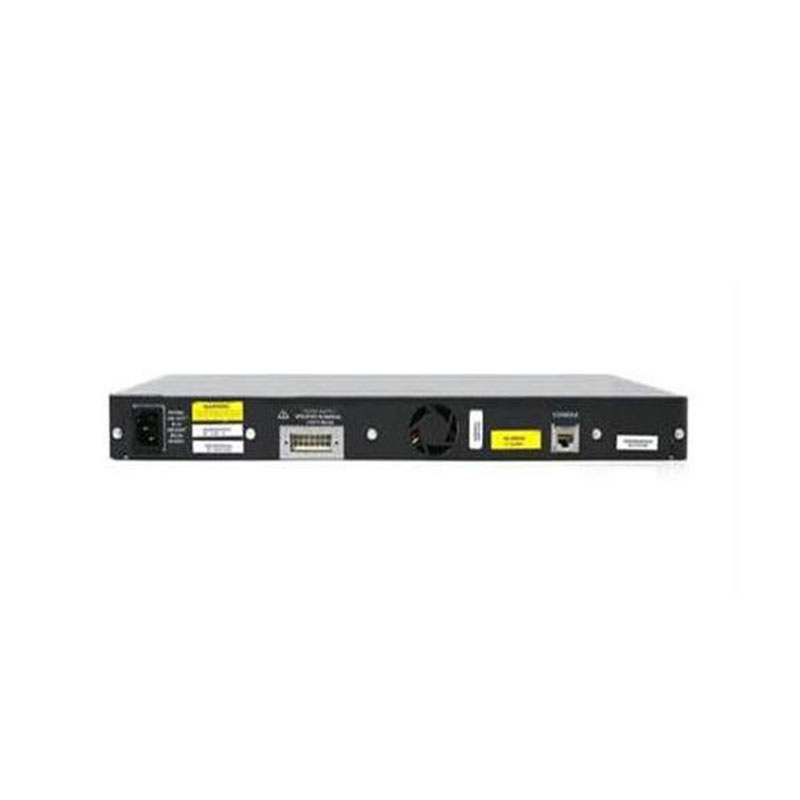

SG500-28MPP-K9 Technical Specifications
Cisco Small Business 28-Ports 10/100/1000Base-T PoE+ Managed Layer 3 Rack-mountable with combo Gigabit SFP+ Switch
Manufacturer: Cisco
Manufacturer Part Number: SG500-28MPP-K9
Series: Small Business SG500
Type: Managed Layer 3 Switch
Ports: 28 x 10/100/1000Base-T RJ-45
Uplink Ports: 2 x combo Gigabit SFP+
PoE Support: Yes, PoE+ supported
PoE Power Budget: 740W total power budget
Switching Capacity: 128 Gbps
Forwarding Rate: 95.23 Mpps
Layer Support: Layer 2 and Layer 3 features
Stacking Support: Yes, up to 7 units
Management: Web GUI, CLI, SNMP, RMON
VLAN Support: Up to 4096 VLANs
QoS: Advanced Quality of Service supported
Security: Access Control Lists, 802.1X, DoS prevention
MAC Address Table: 16K entries
Jumbo Frame Support: Up to 10K bytes
Form Factor: Rack-mountable, 1U
Redundancy: Spanning Tree Protocol (STP), RSTP, MSTP
Auto MDI/MDIX: Supported
