SMT2200RM2UC Technical Specifications

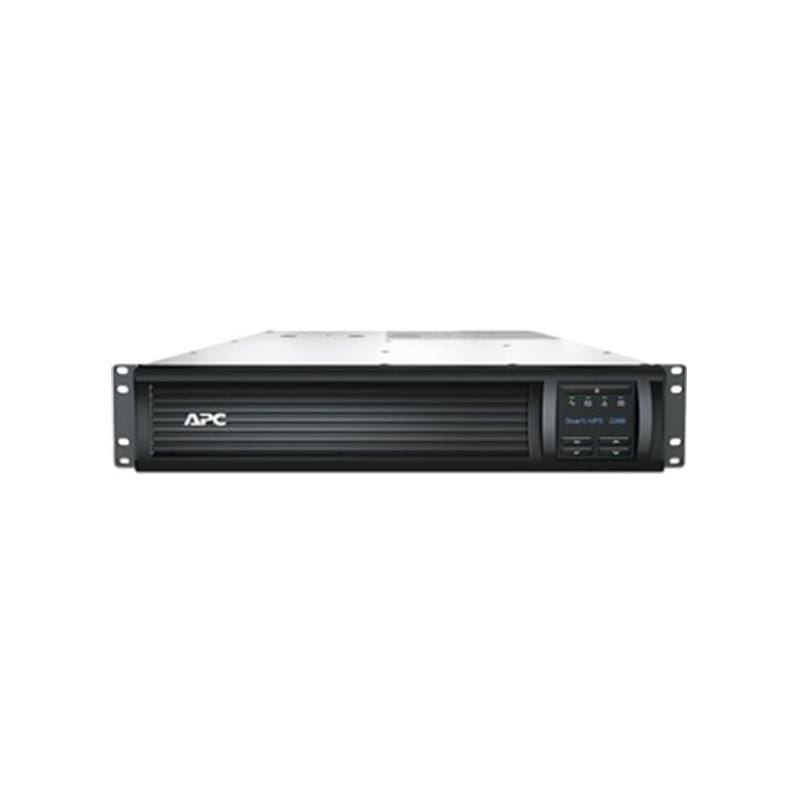

APC Smart-UPS 1.98 kW 2200 VA with APC SmartConnec
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS
Model :SMT2200RM2UC
Bundled with :APC SmartConnect
Country Kits :Canada, United States
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB, RS-232
Expansion Slots
Expansion Slots :1 (total) / 0 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (RS-232), 1 x EPO (emergency power off), 1 x USB
Cable Details
Cables Included :Serial cable – external, USB cable – external, Power cable 8 ft
Software
Type :Drivers & Utilities
Power Device
Form Factor :Rack-mountable
UPS Technology :Line interactive
Voltage Provided :AC 120V
Voltage Provided Margin :± 5%
Frequency Provided :50/60 hertz
Frequency Provided Margin :± 3Hz
UPS Output Waveform :Sinewave
Power Provided :1.98 kilograms per millimetere
Power Capacity (VA) :2200 volt ampere per kilogram 2200VA
Voltage Required :AC 110/120/127 volt
Input Voltage Range :AC 82 – 143 V
Input Voltage Range (Adjustable) :AC 75 – 154 V
Frequency Required :50/60 hertz
Frequency Required Margin :± 3Hz
Input Connector Type :Power NEMA 5-20P
Input Connector Qty :1
Output Connector Type :2 x power NEMA 5-20R, 6 x power NEMA 5-15R
Output Connector Qty :8
Surge Suppression :Yes
Switchover Time :6 millisecond
Surge Energy Rating :530 joules
Circuit Protection :Circuit breaker
Power Device Features :Predicitive failure notification, Emergency power off, Energy meter, Hot-swappable batteries, Audible alarm, Automatic Voltage Regulation (AVR), Automatic self-test, LCD display, Cold-start function
Power Output Connectors Details
Power Output Connectors Details :2 x power NEMA 5-20R, 6 x power NEMA 5-15R
Battery
Run Time (Up To) :6.6 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Lead Acid Battery Features :Sealed, Leak-proof, Maintenance free
Run Time Details
Run Time (Up To) :7.4 min at 1800 Watts, 41.5 min at 500 Watts, 72 min at 300 Watts, 212 min at 100 Watts, 9 min at 1600 Watts, 23.7 min at 800 Watts, 11 min at 1400 Watts, 33.6 min at 600 Watts, 53.4 min at 400 Watts, 13.8 min at 1200 Watts, 6.6 min at full load, 370 min at 50 Watts, 17.7 min at 1000 Watts, 27.9 min at 700 Watts, 110 min at 200 Watts, 18.7 min at half load, 20.4 min at 900 Watts
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Rack Mounting Kit :Included
Height (Rack Units) :2
Equipment Protection Value :150000 US Dollars
Compliant Standards :FCC Part 15 A, CSA, REACH, UL 1778, RoHS
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :18.9 inch
Depth :26.9 inch
Height :3.4 inch
Weight :93.28 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.6 inch
Shipping Depth :38.6 inch
Shipping Height :10 inch
Shipping Weight :109.63 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :55 dBA
