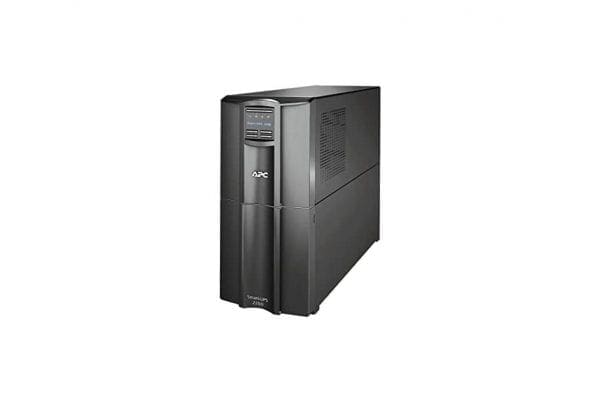

SMT2200US APC Smart-UPS 2200 LCD – UPS 1.98 kW 2200 VA

SMT2200US Overview

APC award-winning Smart-UPS is the most popular UPS in the world for servers, storage and networks. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today’s multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Smart-UPS models have long been considered the benchmark for all network and server UPS’s. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards.

$1,565

Buy Now
Availability: In Stock
SKU:SMT2200US
Brand:

SMT2200US Technical Specifications

APC Smart-UPS 2200 LCD – UPS 1.98 kW 2200 VA

Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS
Model :2200 LCD
Country Kits :United States
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB, RS-232
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x EPO (emergency power off), 1 x management (USB) – 4 pin USB Type B, 1 x management (RS-232) – 9 pin D-Sub (DB-9)
Cable Details
Cables Included :USB cable – external, Power cable – integrated – 6 ft, Serial cable – external
Software
Type :Drivers & Utilities
Power Device
Form Factor :External
UPS Technology :Line interactive
Voltage Provided :AC 120V
Voltage Provided Margin :± 5%
Frequency Provided :47 – 53 / 57 – 63 hertz
UPS Output Waveform :Sinewave
Power Provided :1.98 kilograms per millimetere
Power Capacity (VA) :2200 volt ampere per kilogram 2200VA
Voltage Required :AC 120 volt
Input Voltage Range :AC 82 – 144 V
Input Voltage Range (Adjustable) :AC 75 – 154 V
Frequency Required :50/60 hertz
Input Connector Type :Power NEMA 5-20
Input Connector Qty :1
Output Connector Qty :10
Surge Suppression :Yes
Surge Energy Rating :530 joules
Circuit Protection :Circuit breaker
Power Device Features :Emergency power off, Audible alarm, LCD display
Power Output Connectors Details
Power Output Connectors Details :2 x power NEMA 5-20, 8 x power NEMA 5-15
Battery
Run Time (Up To) :8 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Run Time Details
Run Time (Up To) :16 min at 1200 Watts, 22 min at half load, 420 min at 50 Watts, 41 min at 600 Watts, 90 min at 300 Watts, 51 min at 500 Watts, 21 min at 1000 Watts, 10 min at 1600 Watts, 137 min at 200 Watts, 66 min at 400 Watts, 25 min at 900 Watts, 13 min at 1400 Watts, 34 min at 700 Watts, 9 min at 1800 Watts, 29 min at 800 Watts, 256 min at 100 Watts, 8 min at full load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Compliant Standards :UL 1778, REACH, RoHS, CSA, UL 1449, FCC Part 15 A
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :7.7 inch
Depth :21.4 inch
Height :17 inch
Weight :112.24 lbs
Dimensions & Weight (Shipping)
Shipping Width :15 inch
Shipping Depth :30 inch
Shipping Height :22 inch
Shipping Weight :134.28 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :45 dBA
