SMT750C Technical Specifications

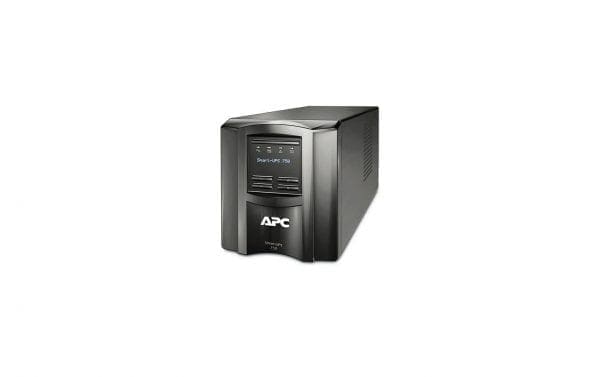

APC Smart-UPS 750VA LCD UPS 500 W 750 VA with APC SmartConnect
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS
Model :750VA LCD
Bundled with :APC SmartConnect
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :RS-232, USB, Ethernet
Expansion Slots
Expansion Slots :1 (total) / 0 (free) x SmartSlot
Interface Provided
Interfaces :Management (Ethernet) – RJ-45, 1 x management (RS-232) – RJ-45, 1 x management (USB) – 4 pin USB Type A
Cable Details
Cables Included :Power cable 6 ft
Software
Type :Drivers & Utilities
Power Device
Form Factor :External
UPS Technology :Line interactive
Voltage Provided :AC 120V
Voltage Provided Margin :± 5%
Frequency Provided :47 – 53 / 57 – 63 hertz
UPS Output Waveform :Sinewave
Power Provided :500 watt
Power Capacity (VA) :750 volt ampere per kilogram 750VA
Voltage Required :AC 120 volt
Input Voltage Range :AC 82 – 144 V
Input Voltage Range (Adjustable) :AC 75 – 154 V
Frequency Required :50/60 hertz
Input Connector Type :Power NEMA 5-15
Input Connector Qty :1
Output Connector Type :Power NEMA 5-15
Output Connector Qty :6
Surge Suppression :Yes
Surge Response Time :0 nanosecond
Surge Energy Rating :540 joules
Circuit Protection :Circuit breaker
Power Device Features :LCD display, Audible alarm
Power Output Connectors Details
Power Output Connectors Details :6 x power NEMA 5-15
Battery
Run Time (Up To) :5 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Run Time Details
Run Time (Up To) :5 min at full load, 16 min at half load
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Compliant Standards :UL 1778, UL 1449, RoHS Exemption 7b
Dimensions & Weight
Width :5.4 inch
Depth :14.5 inch
Height :6.3 inch
Weight :27.56 lbs
Dimensions & Weight (Shipping)
Shipping Width :10.9 inch
Shipping Depth :19.6 inch
Shipping Height :11.9 inch
Shipping Weight :30.91 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :41 dBA
