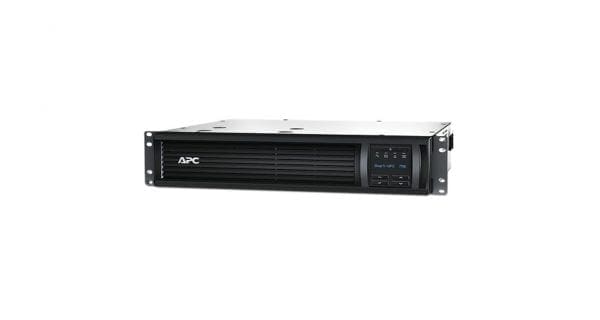

SMT750RM2UC APC Smart-UPS 750VA LCD RM UPS 500 W 750 VA

SMT750RM2UC Technical Specifications

APC Smart-UPS 750VA LCD RM UPS 500 W 750 VA with APC SmartConnec

Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS
Model :750VA LCD RM
Bundled with :APC SmartConnect
Country Kits :United States, Canada
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :Ethernet, RS-232, USB
Expansion Slots
Expansion Slots :1 (total) / 0 (free) x SmartSlot
Interface Provided
Interfaces :Management (Ethernet) – RJ-45, 1 x management (USB) – 4 pin USB Type B, 1 x management (RS-232) – RJ-45
Cable Details
Cables Included :Power cable 8 ft
Power Device
Form Factor :Rack-mountable
UPS Technology :Line interactive
Voltage Provided :AC 120V
Voltage Provided Margin :± 5%
Frequency Provided :50/60 hertz
Frequency Provided Margin :± 3Hz
UPS Output Waveform :Sinewave
Power Provided :500 watt
Power Capacity (VA) :750 volt ampere per kilogram 750VA
Voltage Required :AC 110/120/127 volt
Input Voltage Range :AC 82 – 144 V
Input Voltage Range (Adjustable) :AC 75 – 154 V
Frequency Required :50/60 hertz
Frequency Required Margin :± 3Hz
Input Connector Type :Power NEMA 5-15
Input Connector Qty :1
Output Connector Type :Power NEMA 5-15
Output Connector Qty :6
Switchover Time :6 millisecond
Surge Energy Rating :680 joules
Power Device Features :Automatic Voltage Regulation (AVR), Audible alarm, Energy meter, LCD display, Cold-start function
Power Output Connectors Details
Power Output Connectors Details :6 x power NEMA 5-15
Battery
Voltage Provided :24 volt
Run Time (Up To) :5 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Lead Acid Battery Features :Leak-proof, Maintenance free, Sealed
Run Time Details
Run Time (Up To) :60 min at 100 Watts, 5 min at full load, 7 min at 400 Watts, 24 min at 200 Watts, 11 min at 300 Watts, 120 min at 50 Watts
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Height (Rack Units) :2
Equipment Protection Value :150000 US Dollars
Compliant Standards :CSA C22.2 No. 107.1, RoHS, CSA, REACH, ICES-003, UL 1449, UL 1778, FCC Part 15 Class B
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :17 inch
Depth :16.1 inch
Height :3.4 inch
Weight :39.02 lbs
Dimensions & Weight (Shipping)
Shipping Width :21.1 inch
Shipping Depth :22.4 inch
Shipping Height :9.3 inch
Shipping Weight :49.93 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :41 dBA
