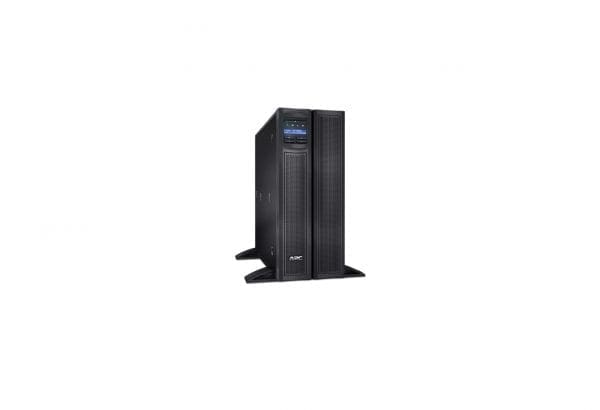

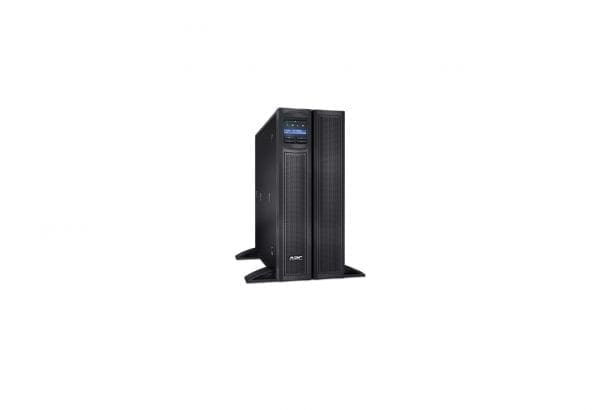

SMX3000LV APC Smart-UPS X 3000VA Rack/Tower LCD UPS

SMX3000LV Oveview

APC award-winning Smart-UPS is the most popular UPS in the world for servers, storage and network power protection. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today’s multi-core or virtualized servers that have varying load consumption. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery.

$1,887

Buy Now
Availability: In Stock
SKU:SMX3000LV
Brand:

SMX3000LV Technical Specifications

APC Smart-UPS X 3000VA Rack/Tower LCD UPS

Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS X
Model :3000 Rack/Tower LCD
Country Kits :United States, Canada
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB, RS-232
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x EPO (emergency power off), 1 x management (USB) – 4 pin USB Type B, 1 x management (RS-232) – 9 pin D-Sub (DB-9)
Cable Details
Cables Included :Power cable 8 ft, Serial cable – external, USB cable – external
Software
Type :Drivers & Utilities
Power Device
Form Factor :Rack-mountable / external
UPS Technology :Line interactive
Voltage Provided :AC 120 volt
Voltage Provided Margin :± 5%
Frequency Provided :47 – 53 / 57 – 63 hertz
UPS Output Waveform :Sinewave
Power Provided :2700 watt
Power Capacity (VA) :3000 volt ampere per kilogram 3000VA
Voltage Required :AC 120 volt
Input Voltage Range :AC 70 – 153 V
Frequency Required :50/60 hertz
Input Connector Type :Power NEMA L5-30
Input Connector Qty :1
Output Connector Qty :10
Surge Suppression :Yes
Switchover Time :2 millisecond
Surge Energy Rating :540 joules
Power Device Features :Hot-swappable batteries, Audible alarm, Automatic Voltage Regulation (AVR), LCD display, LED indicators
Power Output Connectors Details
Power Output Connectors Details :6 x power NEMA 5-15, 1 x power NEMA L5-30, 3 x power NEMA 5-20
Battery
Run Time (Up To) :6 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Run Time Details
Run Time (Up To) :18 min at half load, 6 min at full load
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Included Accessories :Tower stand
Rack Mounting Kit :Included
Height (Rack Units) :4
Compliant Standards :EN55022 Class A, REACH, FCC Part 15 A, BSMI, CSA, VCCI Class A, NOM, RoHS, TUV, EN 50091-2, UL 1778, UL 1449
Dimensions & Weight
Width :19 inch
Depth :17 inch
Height :7 inch
Weight :85.19 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.1 inch
Shipping Depth :24.9 inch
Shipping Height :13 inch
Shipping Weight :105.23 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :55 dBA
