SN6500B HPE Storefabric 16GB Switch 48 Ports Managed Rack Mountable
SN6500B Overview

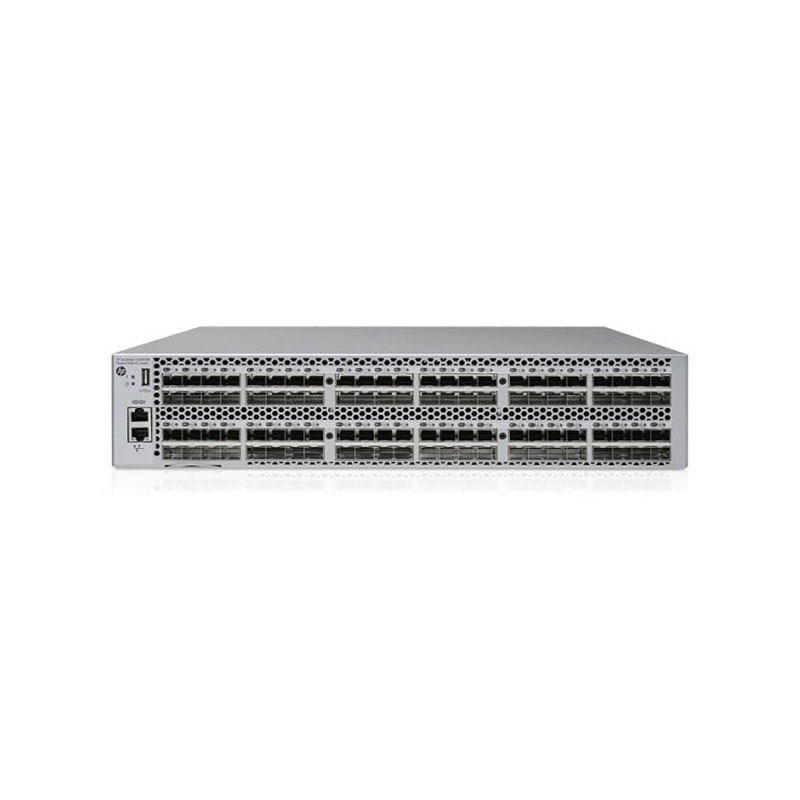

The HPE Storefabric 16GB 96Port/48Port Active Fibre Channel 48 Ports Managed Switch is a high-performance data center switch designed for large-scale storage networks. It has a maximum data transfer rate of 16GB per second, which makes it ideal for demanding storage applications such as backup and recovery, database replication, and virtualized storage environments.
SN6500B Technical Specifications
HPE Storefabric 16GB 96Port/48Port Active Fibre Channel Switch 48 Ports Managed Rack Mountable
Manufacturer: HPE
Part Number or SKU# SN6500B
Product Type: Managed Switch
Technical Information
Enclosure Type : Rack-Mountable – 2u
Ports : 48 X 16GB Fibre Channel Sfp+
Remote Management Protocol : Snmp 1, Snmp 3, Http, Ssh, Cli
Expansion / Connectivity
Interfaces
1 X 10base-T/100base-Tx – Rj-45 – Management
1 X Console – Rj-45 – Management
1 X Usb – Type A – Management
96 X Sfp+
Power
Power Device : Internal Power Supply – Hot-Plug
Installed Qty : 2 (Installed) / 2 (Max)
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Power Provided : 350 Watt
Voltage Required : Ac 120/230 V ( 50/60 Hz )
