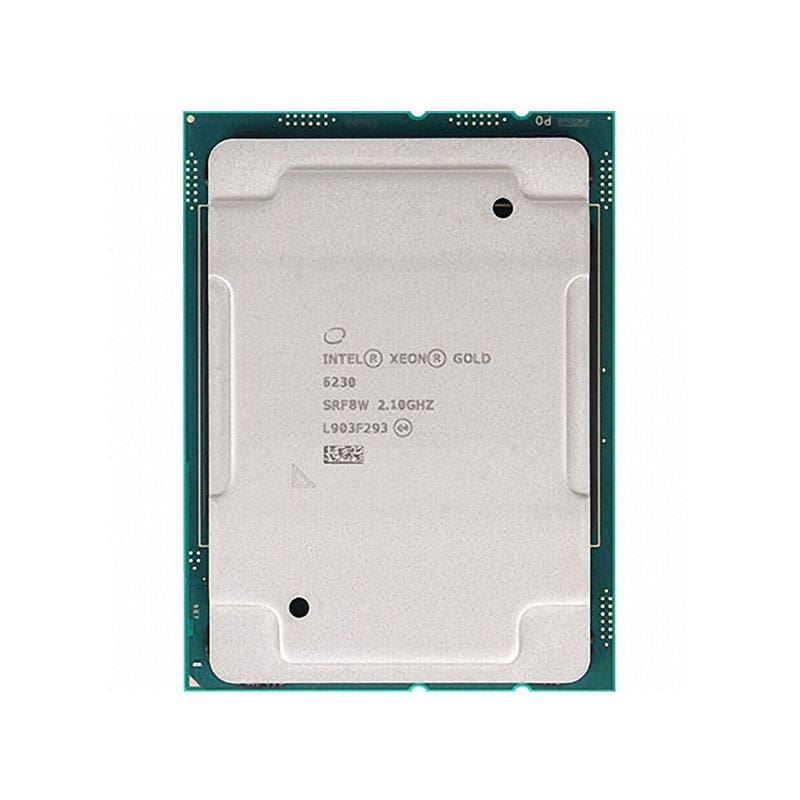

SRF8W Intel Xeon Gold 6230 20-Core 2.10GHz 27.5MB L3 Processor

SRF8W Technical Specifications

Intel Xeon Gold 6230 20-Core 2.10GHz 27.5MB L3 Processor

Brand Intel
Part No. SRF8W
Processor Type Server
Processor Family 2nd Generation Intel Xeon Scalable Processors
Series Xeon Gold Processor
Core Model Type/ProcNo. 6230
Processor Code Name Cascade Lake
Core Stepping B1
Manufacturing Technology 14 nm
# of Cores 20
# of Threads 40
Clock Speed 2.10 GHz
Max Turbo Frequency 3.90 GHz
L3 Cache Size 27.5 MB
# of UPI Links 3
Thermal Power 125 Watts
Max Memory Size 1 TB
Memory Types DDR4-2933
Maximum Memory Speed 2933 MHz
