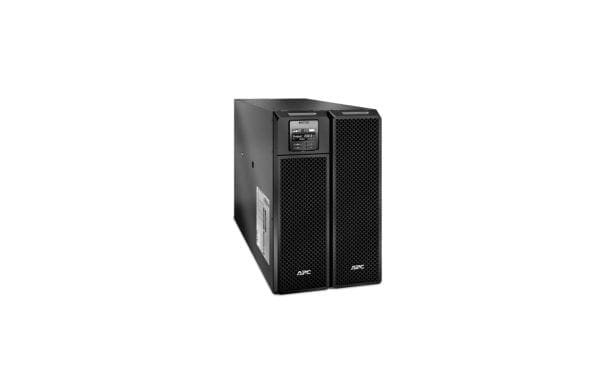

SRT10KXLT30 APC Smart-UPS SRT 10000VA 208V L630

SRT10KXLT30 Overview

Automatic internal bypass supplies utility power to the connected loads in the event of a UPS power overload or fault.Scalable runtime allows additional run time to be quickly added as needed.Intelligent battery management maximizes battery performance, life, and reliability through intelligent, precision charging.Hot-swappable batteries ensures clean, uninterrupted power to protected equipment while batteries are being replaced.

$10,099

Buy Now
Availability: In Stock
SKU:SRT10KXLT30
Brand:

SRT10KXLT30 Technical Specifications

APC Smart-UPS SRT 10000VA 208V L630

Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS SRT
Model :10000VA
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :Ethernet 10/100, USB
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x serial – RJ-45, 1 x management (USB) – 4 pin USB Type B, 1 x EPO (emergency power off), 1 x management (Ethernet) – RJ-45
Power Device
Form Factor :Rack-mountable / external
UPS Technology :On-line
Voltage Provided :AC 208/240 volt
Voltage Provided Margin :± 2%
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :10 kilograms per millimetere
Power Capacity (VA) :10000 volt ampere per kilogram 10000VA
Voltage Required :AC 208 volt
Input Voltage Range :AC 160 – 275 V
Frequency Required :40 – 70 hertz
Input Connector Type :Hardwire 3-wire (2PH + G)
Output Connector Type :Hardwire 3-wire (2PH + G), Power NEMA L6-30
Output Connector Qty :7
Surge Suppression :Yes
Surge Energy Rating :480 joules
Power Device Features :Audible alarm, LCD display
Power Output Connectors Details
Power Output Connectors Details :1 x hardwire 3-wire (2PH + G), 6 x power NEMA L6-30
Battery
Run Time (Up To) :4 minute (time unit)
Load Type :At full load
Recharge Time :1.5 hour(s)
Lead Acid Battery Features :Maintenance free, Sealed, Leak-proof
Run Time Details
Run Time (Up To) :11 min at half load, 4 min at full load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Height (Rack Units) :6
Compliant Standards :IP20, REACH, FCC Part 15 A, RoHS, UL 1778, CSA C22.2 No. 107.3, NOM
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :17 inch
Depth :28.1 inch
Height :10.4 inch
Weight :245.99 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.6 inch
Shipping Depth :39.4 inch
Shipping Height :18.1 inch
Shipping Weight :278.99 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
Sound Emission :55 dBA
