Home›UPS›APC›SRT3000XLW-IEC APC Smart-UPS SRT 3000VA 208/230V IEC
SRT3000XLW-IEC

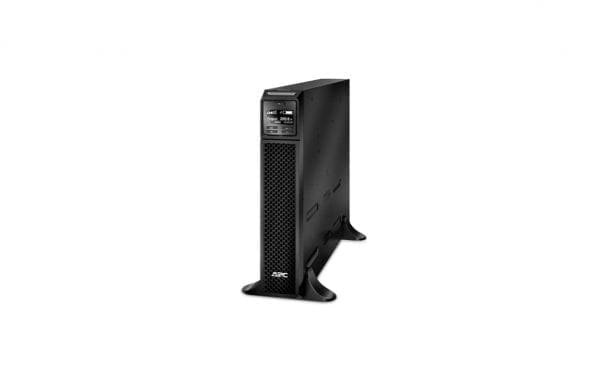

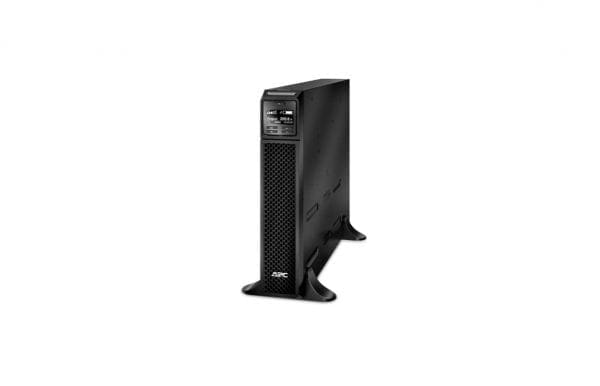

SRT3000XLW-IEC APC Smart-UPS SRT 3000VA 208/230V IEC

SRT3000XLW-IEC Overview

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extreme

$3,579

Buy Now
Availability: In Stock
SKU:SRT3000XLW-IEC
Brand:

SRT3000XLW-IEC Technical Specifications

APC Smart-UPS SRT 3000VA 208/230V IEC

Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS SRT
Model :3000VA
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x serial – RJ-45, 1 x management (USB) – 4 pin USB Type A, 1 x EPO (emergency power off)
Software
Type :Drivers & Utilities
Power Device
Form Factor :External
UPS Technology :On-line
Voltage Provided :AC 208/230 volt
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :2700 watt
Power Capacity (VA) :3000 volt ampere per kilogram 3000VA
Voltage Required :AC 208/230 volt
Input Voltage Range :AC 160 – 275 V
Frequency Required :40 – 70 hertz
Input Connector Qty :1
Output Connector Type :Power IEC 60320 C13, Power IEC 60320 C19
Output Connector Qty :8
Surge Suppression :Yes
Surge Energy Rating :340 joules
Power Device Features :Audible alarm, Eco-Mode, LCD display, Internal bypass
Power Output Connectors Details
Power Output Connectors Details :6 x power IEC 60320 C13, 2 x power IEC 60320 C19
Battery
Run Time (Up To) :3.8 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Lead Acid Battery Features :Maintenance free, Sealed, Leak-proof
Run Time Details
Run Time (Up To) :11.4 min at half load, 3.8 min at full load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Included Accessories :Vertical stand
Compliant Standards :IEC 62040-2, IP20, CSA C22.2 No. 107.3, EAC, VDE, RoHS, FCC Part 15 A, UL 1778, RCM, EN 62040-2
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :3.3 inch
Depth :25 inch
Height :17 inch
Weight :69 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.6 inch
Shipping Depth :34.3 inch
Shipping Height :9.7 inch
Shipping Weight :81 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
Sound Emission :55 dBA
