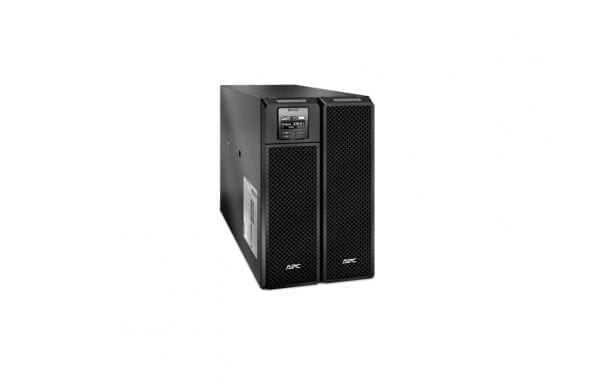

SRT8KXLT30 APC Smart-UPS SRT 8000VA 208V L630

SRT8KXLT30 Overview

Automatic internal bypass supplies utility power to the connected loads in the event of a UPS power overload or fault.
Scalable runtime allows additional run time to be quickly added as needed.
Intelligent battery management maximizes battery performance, life, and reliability through intelligent, precision charging.
Hot-swappable batteries ensures clean, uninterrupted power to protected equipment while batteries are being replaced.

$8,727

Buy Now
Availability: In Stock
SKU:SRT8KXLT30
Brand:

SRT8KXLT30 Technical Specifications

APC Smart-UPS SRT 8000VA 208V L630

Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS SRT
Model :8000VA
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB, Ethernet 10/100
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x serial – RJ-45, 1 x management (Ethernet) – RJ-45, 1 x management (USB) – 4 pin USB Type B, 1 x EPO (emergency power off)
Cable Details
Cables Included :USB cable – external
Power Device
Form Factor :Rack-mountable / external
UPS Technology :On-line
Voltage Provided :AC 208/240 volt
Voltage Provided Margin :± 2%
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :8000 watt
Power Capacity (VA) :8000 volt ampere per kilogram 8000VA
Voltage Required :AC 208 volt
Input Voltage Range :AC 160 – 275 V
Frequency Required :40 – 70 hertz
Input Connector Type :Hardwire 3-wire (2PH + G)
Output Connector Type :Hardwire 3-wire (2PH + G), Power NEMA L6-30
Output Connector Qty :7
Surge Suppression :Yes
Surge Energy Rating :480 joules
Power Device Features :Audible alarm, LCD display
Power Output Connectors Details
Power Output Connectors Details :6 x power NEMA L6-30, 1 x hardwire 3-wire (2PH + G)
Battery
Run Time (Up To) :5 minute (time unit)
Load Type :At full load
Recharge Time :1.5 hour(s)
Lead Acid Battery Features :Leak-proof, Maintenance free, Sealed
Run Time Details
Run Time (Up To) :5 min at full load, 14 min at half load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Height (Rack Units) :6
Rack Size :19″
Rack Size (metric) :48.3 cm
Compliant Standards :UL 1778, FCC Part 15 A, RoHS, NOM, REACH, IP20, CSA C22.2 No. 107.3
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :17 inch
Depth :28.1 inch
Height :10.4 inch
Weight :245.99 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.6 inch
Shipping Depth :39.4 inch
Shipping Height :18.1 inch
Shipping Weight :278.99 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
Sound Emission :55 dBA
