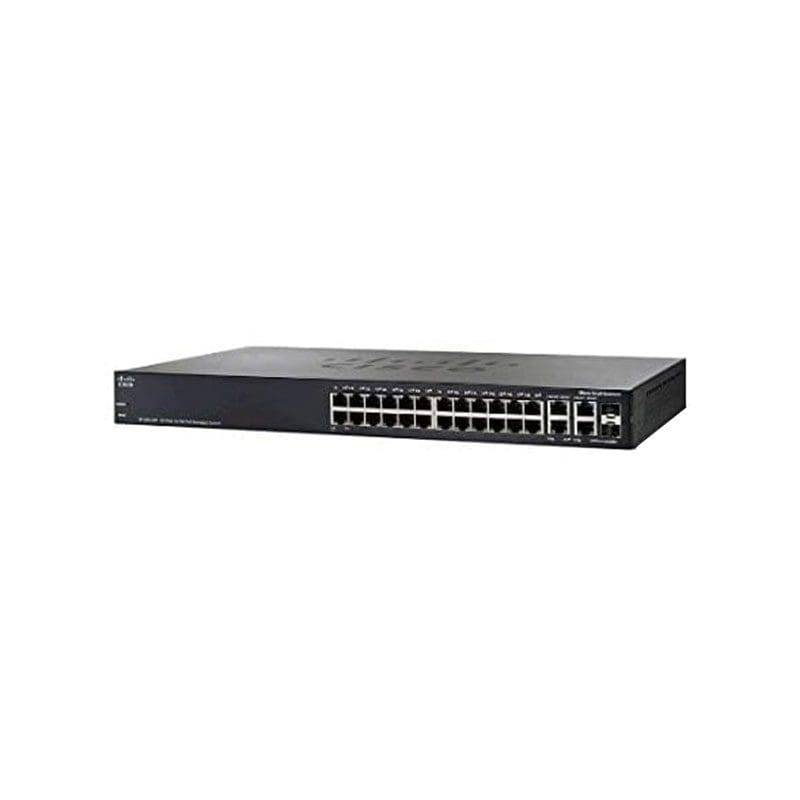

Refurbished SRW224G4P-K9-AR Technical Specifications
Cisco Small Business SF300-24P – 24 Port Switch
Cable
Connectivity Details Type : Serial cable
Cable Details
Form Factor : External
Included Qty : 1
Dimensions & Weight
Depth : 10.1 in
Height : 1.8 in
Weight : 8.16 lbs
Width : 17.3 in
Environmental Parameters
Humidity Range Operating : 10 – 90% (non-condensing)
Max Operating Temperature : 104 °F
Min Operating Temperature : 32 °F
Flash Memory
Installed Size : 16 MB
Type : Flash
Header
Brand : Cisco
Compatibility : Mac, PC
Localization : Chinese (simplified), English, French, German, Italian, Japanese, Spanish
Manufacturer : CISCO DS HARDWARE DIRECT
Model : SF300-24P
Packaged Quantity : 1
Product Line : Cisco Small Business
Product Series SF300
Interface Provided
Comments : Management
Connector Type : DB-9
Qty : 1
Type : Console
Comments : PoE
Connector Type : RJ-45
Qty : 24
Type : 100Base-TX
Connector Type : SFP (mini-GBIC)
Qty : 2 SFP
Qty : 4
Type : 1000Base-T
Miscellaneous
Authentication Method : RADIUS, Secure Shell (SSH), TACACS+
Compliant Standards : CSA 22.2 No. 60950, FCC Part 15 A, UL 60950
Encryption Algorithm : SSL
Height (Rack Units) : 1
Rack Mounting Kit : Included
Ports
Qty : 24
Type : 10/100 (PoE)
Ports (2nd)
Qty : 2
Type : Combo Gigabit SFP
Ports (3rd)
Qty : 2
Type : 10/100/1000
Power Device
Frequency Required : 50/60 Hz
Nominal Voltage : AC 120/230 V
Type : Internal power supply
RAM
Installed Size : 128 MB
Networking
Advanced Switching : Layer 3
Auxiliary Network Ports : 2×10/100/1000Base-T/SFP (mini-GBIC)(uplink), 2×10/100/1000Base-T
Cabling Type : Ethernet 100Base-TX, Ethernet 10Base-T
Communication Mode : Full-duplex, Half-duplex
Compliant Standards : IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Connectivity Technology : Wired
Features : Access Control List (ACL) support, BOOTP support, Broadcast Storm Control, DHCP support, DiffServ support, DoS attack prevention, Firmware upgradable, IGMP snooping, IPv6 support, Jumbo Frames support, Layer 2 switching, Layer 3 switching, MLD snooping, Multicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, Port mirroring, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Spanning Tree Protocol (STP) support, Syslog support, Trivial File Transfer Protocol (TFTP) support, Unicast Storm Control, VLAN support, Weighted Round Robin (WRR) queuing
Form Factor : Desktop
MAC Address Table Size : 8K entries
Manageable : Yes
Ports Qty : 24
Power Over Ethernet (PoE) : PoE
Remote Management Protocol : CLI, HTTP, HTTPS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet
Routing Protocol : Static IPv4 routing
Status Indicators : Link/activity, Port transmission speed, System
Subcategory : Network hubs and switches
Subtype : Fast Ethernet
Switching Protocol : Ethernet
Type : Switch
