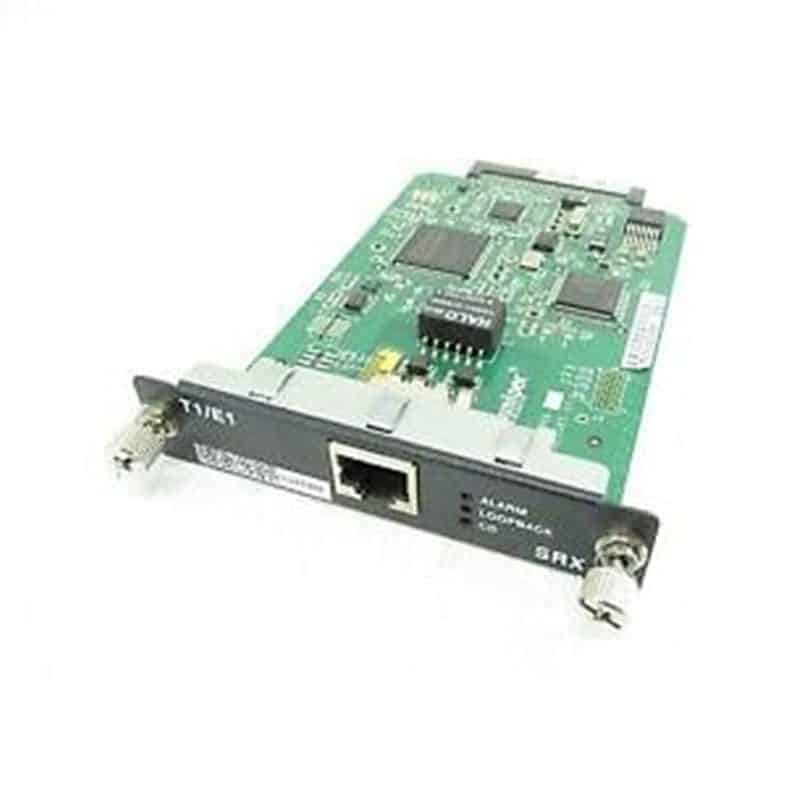

SRX-MP-1T1E1-R Juniper Networks Mini-PIM expansion module
SRX-MP-1T1E1-R Overview
The 1-Port T1/E1 Mini-Physical Interface Module (Mini-PIM) provides the physical connection to T1 or E1 network media types and also performs T1 or E1 framing and line-speed signaling.
$389
SRX-MP-1T1E1-R Technical Specifications
Juniper Networks Mini-PIM expansion module
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :Mini-PIM
Packaged Quantity :1
Line Properties
Line Rate :T-1/E-1
Line Coding Format :HDB3, AMI, B8ZS
Networking
Type :Expansion module
Form Factor :Plug-in module
Connectivity Technology :Wired
Data Link Protocol :Frame Relay, PPP, HDLC
Data Transfer Rate :2048 MBps
Features :Integrated CSU/DSU, Loopback, Extended Super Frame (ESF)
Compliant Standards :G.703
Ports
Type :T1/E1
Interface Provided
Interfaces :1 x T1/E1 – RJ-48
Dimensions & Weight
Width :3.7 inch
Depth :5.7 inch
Height :0.8 inch
Weight :2.89 ounce
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
