SRX-MP-1VDSL2-A Technical Specifications

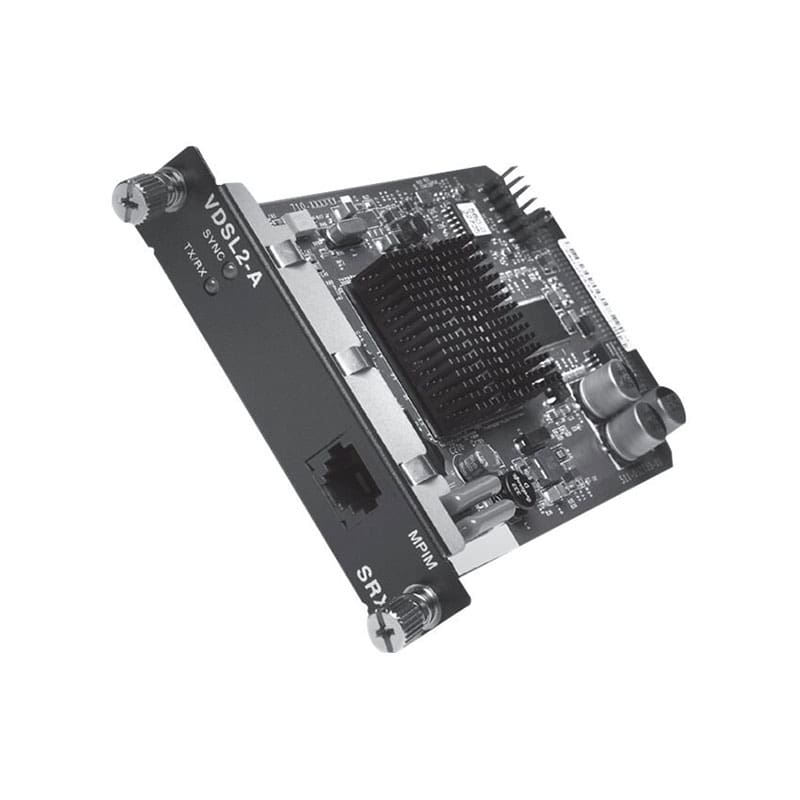

Juniper Networks Single-Port VDSL2 Annex A Mini-Physical Interface Module
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :Single-Port VDSL2 Annex A Mini-Physical Interface Module (Mini-PIM)
Packaged Quantity :1
Modem
Type :DSL modem
Form Factor :Internal
Connectivity Technology :Wired
Max Transfer Rate :100 MBps
Digital Signaling Protocol :VDSL2, ADSL, ADSL2, ADSL2+
Protocols & Specifications :ITU G.992.5 Annex A, ITU G.992.3 Annex A, ITU G.992.5 Annex M, ITU G.992.3 Annex M, ITU G.992.1 (G.DMT) Annex A
Features :Auto configuration
Networking
Data Link Protocol :MLPPP
Network / Transport Protocol :OAM F5, OAM F4
Features :Dying Gasp support
Compliant Standards :IEEE 802.3ah
Interface Provided
Interfaces :1 x modem – VDSL2 – RJ-11
Slot Required
Compatible Slots :1 x expansion slot
