SRX1K3K-NP-2XGE-SFPP Juniper Network Processing I/O Card
SRX1K3K-NP-2XGE-SFPP Overview

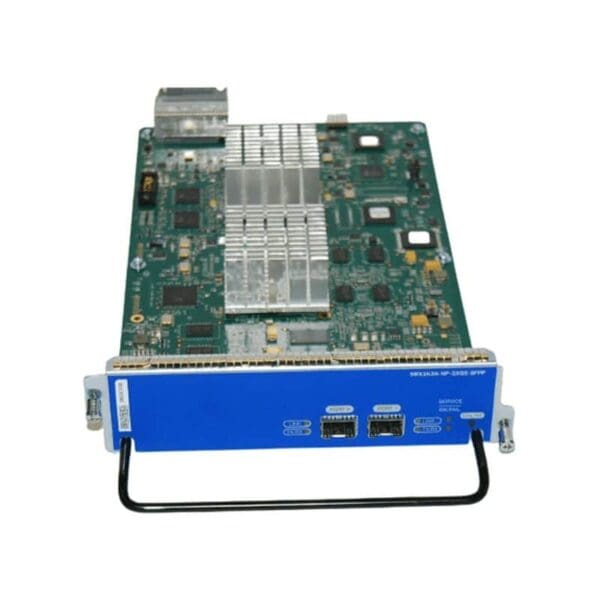

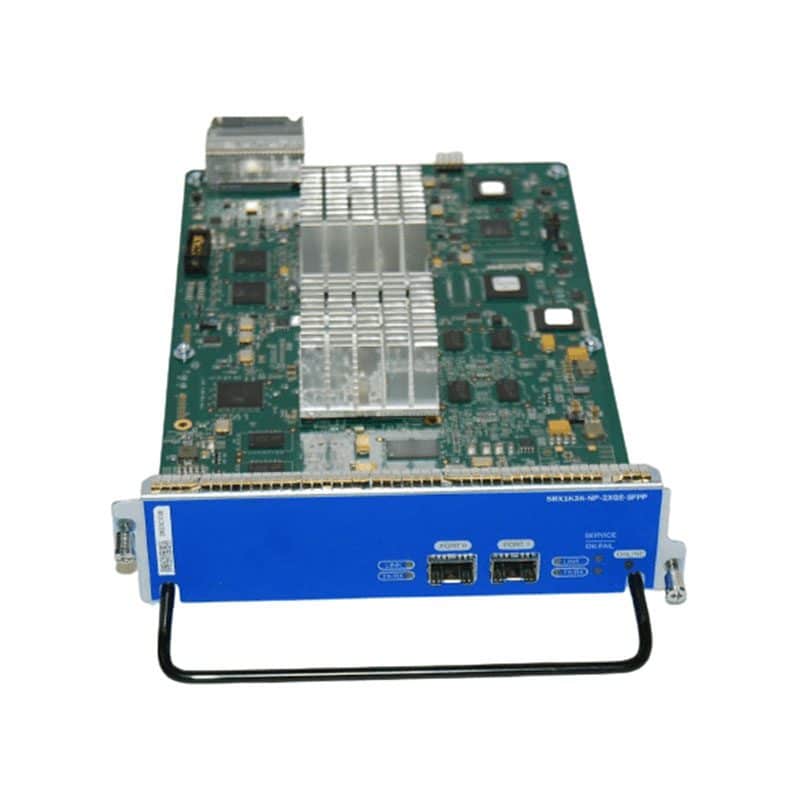

The Network Processing I/O card (NP-IOC) SRX1K3K-NP-2XGE-SFPP is an IOC that includes its own Network Processing Unit (NPU), so that traffic traversing the NP-IOC does not have to also traverse the services gateway bus to a remote NPC. This feature makes the NP-IOC well-suited to low-latency applications. It is inserted horizontally into the midplane of the services gateway to communicate with the SFB and to receive power. To use fiber interface media, install enhanced small form-factor pluggable (SFP+) transceivers on the desired ports. LEDs on the faceplate of the NP-IOC indicate port status and connectivity.
$23,699
SRX1K3K-NP-2XGE-SFPP Technical Specifications
Juniper Networks Network Processing I/O Card control processor
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :Network Processing I/O Card
Packaged Quantity :1
Networking
Type :Control processor
Form Factor :Plug-in module
Ports Qty :2
Connectivity Technology :Wired
Status Indicators :Link OK, Diagnostic, Fail
Features :Hot swap module replacement
Expansion Slots
Expansion Slots :2 (total) / 2 (free) x SFP+
Slot Required
Compatible Slots :1 x expansion slot
Power Device
Power Consumption Operational :52 watt
System Requirements
OS Required :JUNOS
Dimensions & Weight
Weight :2.43 lbs
