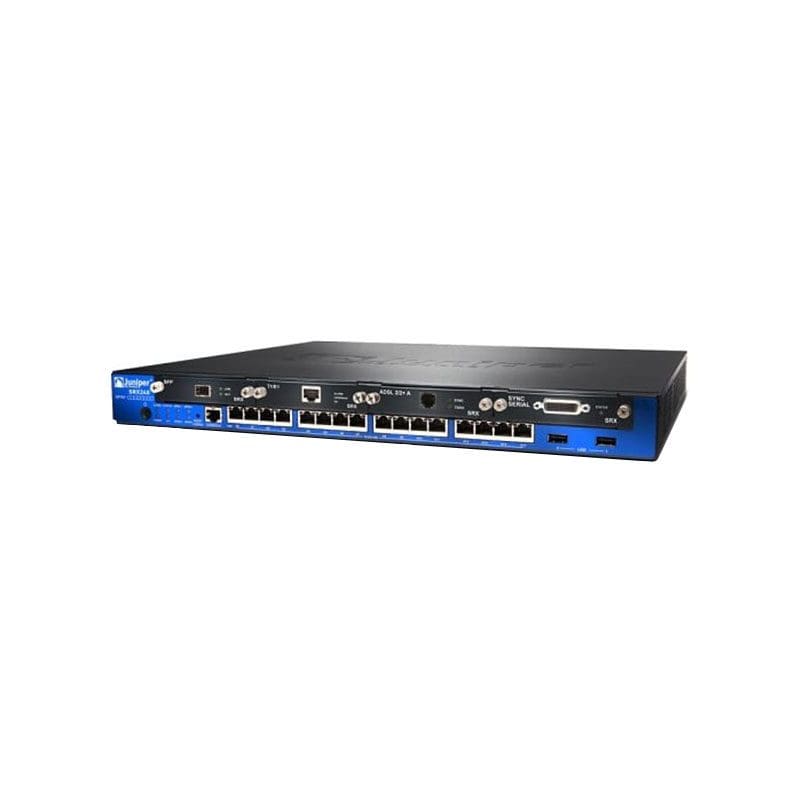

SRX240H2-DC-TAA Technical Specifications
Juniper Networks SRX240 Services Gateway security appliance
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :SRX240 Services Gateway
Packaged Quantity :1
RAM
Installed Size :2 GB
Flash Memory
Installed Size :2 GB, 2 GB
Optical Storage
Type :None
Performance
Performance :Connection rate: 8500 connections per second, IPS throughput: 230 Mbps, VPN throughput (IPSec): 300 Mbps, Firewall throughput (large packets): 1.8 Gbps, Firewall throughput (HTTP): 830 Mbps, Firewall throughput (IMIX): 600 Mbps, Antivirus throughput: 85 Mbps
Capacity
Capacity :OSPF instances: 20, Static routes: 256000, IPSec VPN tunnels: 1000, BGP instances: 20, Virtual interfaces (VLANs): 2000, Security policies: 4096, BGP routes: 600000, Security zones: 64, VPN tunnel interfaces: 128, MLFR maximum physical interfaces: 4, RIP routes: 200000, MLPPP maximum physical interfaces: 4, OSPF routes: 200000, Concurrent sessions: 256000, Concurrent VPN tunnels: 1000, BGP peers: 32, Virtual routers: 64, RIP instances: 20, Maximum number of remote users: 250, Maximum number of users: unlimited
Networking
Type :Security appliance
Form Factor :Rack-mountable
Ports Qty :16
Connectivity Technology :Wired
Data Link Protocol :FRF.16, PPP, Frame Relay, Gigabit Ethernet, FRF.15, FRF.12, V.35, X.21, Ethernet, MLPPP, MLFR, Fast Ethernet, RS-449, HDLC, RS-232
Routing Protocol :PIM-SM, BGP, IGMPv3, PIM-SSM, RIP-1, PIM-DM, IS-IS, ECMP, VRRP, MSDP, IGMPv2, DVMRP, MLD, MPLS, RIP-2, IGMP, GRE, OSPFv3, RIPng, OSPF
Network / Transport Protocol :SMTP, PPPoA, RSVP, IPSec, DHCP, IMAP, PPPoE, POP3, FTP
Features :Syslog support, VPN support, IPv6 support, Link Fragmentation and Interleaving (LFI), DDos attack prevention, Policy based access control, VLAN support, Multiple Spanning Tree Protocol (MSTP) support, DHCP relay, Role based access control, Quality of Service (QoS), Layer 2 switching, Intrusion Prevention System (IPS), NAT support, Firmware upgradable, IGMP snooping, Weighted Random Early Detection (WRED), Static routing, Rapid Spanning Tree Protocol (RSTP) support, Link Aggregation Control Protocol (LACP), Content filtering, DiffServ support, J-Flow, Tagged VLAN, IPv4 support, DHCP server, DoS attack prevention, LLDP support, PAT support, Firewall protection
Compliant Standards :IEEE 802.1D, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1p, IEEE 802.1ad, IEEE 802.1Q
Expansion Slots
Expansion Slots :4 (total) / 4 (free) x expansion slot
Interface Provided
Interfaces :2 x USB – Type A, 16 x 1000Base-T – RJ-45
OS Provided
Type :JUNOS
Power Device
Type :Internal power supply
Installed Qty :1
Max Supported Qty :1
Power Provided :190 watt
Nominal Voltage :DC -48 V
Power Consumption Operational :72 watt
Miscellaneous
Included Accessories :Rack mount kit
TAA Compliant :Yes
Height (Rack Units) :1
Encryption Algorithm :256-bit SHA, IKEv2, PKI, 128-bit AES, IKE, DSA, SHA-2, Triple DES, SHA-1, MD5, DES, DH, RSA, 256-bit AES
Authentication Method :X.509 certificates, SecurID, LDAP, RADIUS, XAUTH authentication
MTBF :11.63 years
Compliant Standards :CB, AS/NZS 60950-1, UL 60950-1, EN300-386, CTR 21, NEBS, AS/ACIF S002, EN 60950-1, CISPR 22 Class A, VCCI Class A, DOC, CS-03, TIA/EIA/IS-968, FCC Class A certified, EMC, ICSA Firewall certified, CAN/CSA C22.2 No. 60950-1, ICSA IPSec certified, FIPS 140-2, EN55022 Class A, EAL 4, EMI, ICES Class A, CAN/CSA-C22.2 No. 60950-1, EN 300 386
Dimensions & Weight
Width :17.5 inch
Depth :15.2 inch
Height :1.7 inch
Weight :12.57 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
