SRX240H2-POE-TAA Technical Specifications

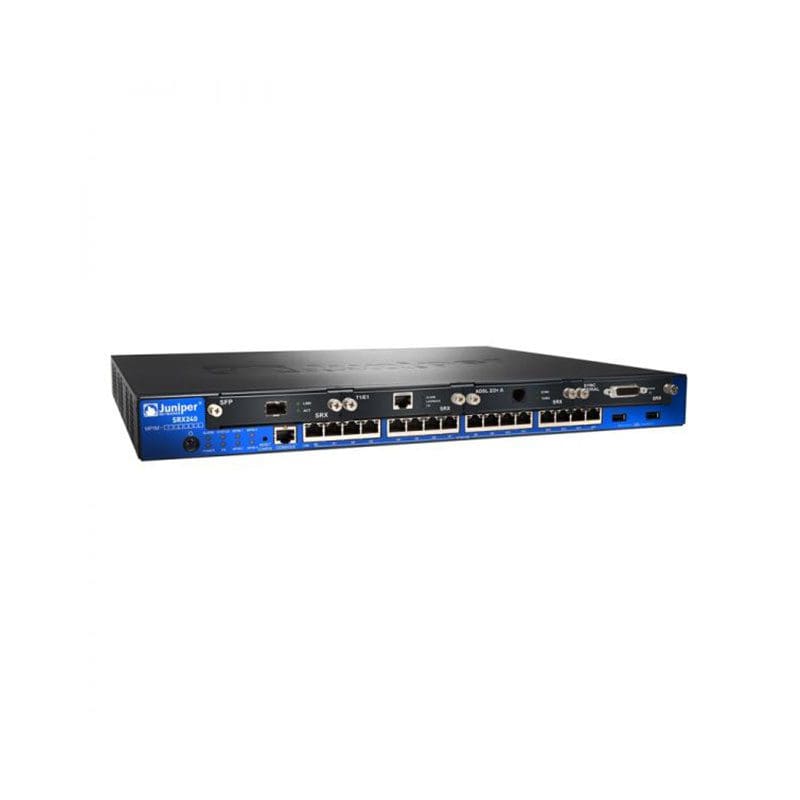

Juniper Networks SRX240 Services Gateway security appliance
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :SRX240 Services Gateway
Packaged Quantity :1
RAM
Installed Size :2 GB
Flash Memory
Installed Size :2 GB, 2 GB
Optical Storage
Type :None
Performance
Performance :Firewall throughput (large packets): 1.8 Gbps, VPN throughput (IPSec): 300 Mbps, Firewall throughput (IMIX): 600 Mbps, Firewall throughput (HTTP): 830 Mbps, Connection rate: 8500 connections per second, Antivirus throughput: 85 Mbps, IPS throughput: 230 Mbps
Capacity
Capacity :MLFR maximum physical interfaces: 4, VPN tunnel interfaces: 128, BGP routes: 600000, BGP instances: 20, MLPPP maximum physical interfaces: 4, Virtual routers: 64, Static routes: 256000, OSPF instances: 20, Maximum number of users: unlimited, Concurrent sessions: 256000, Security policies: 4096, Concurrent VPN tunnels: 1000, BGP peers: 32, Security zones: 64, Virtual interfaces (VLANs): 2000, OSPF routes: 200000, Maximum number of remote users: 250, RIP routes: 200000, IPSec VPN tunnels: 1000, RIP instances: 20
Networking
Type :Security appliance
Form Factor :Rack-mountable
Ports Qty :16
Connectivity Technology :Wired
Data Link Protocol :MLFR, Fast Ethernet, HDLC, FRF.16, FRF.15, X.21, RS-449, PPP, RS-232, MLPPP, V.35, Ethernet, Frame Relay, Gigabit Ethernet, FRF.12
Routing Protocol :IGMPv2, GRE, RIP-2, ECMP, MLD, PIM-SSM, OSPF, RIPng, OSPFv3, MPLS, MSDP, DVMRP, IGMPv3, VRRP, BGP, RIP-1, IS-IS, PIM-DM, PIM-SM, IGMP
Network / Transport Protocol :PPPoA, POP3, RSVP, IPSec, FTP, DHCP, SMTP, IMAP, PPPoE
Power Over Ethernet (PoE) :PoE+
Features :DoS attack prevention, Layer 2 switching, Link Fragmentation and Interleaving (LFI), Multiple Spanning Tree Protocol (MSTP) support, VPN support, Weighted Random Early Detection (WRED), DDos attack prevention, Firmware upgradable, DHCP relay, Rapid Spanning Tree Protocol (RSTP) support, NAT support, VLAN support, IGMP snooping, Static routing, PAT support, Content filtering, Link Aggregation Control Protocol (LACP), Tagged VLAN, Intrusion Prevention System (IPS), DiffServ support, LLDP support, Firewall protection, Role based access control, IPv6 support, Quality of Service (QoS), Syslog support, DHCP server, IPv4 support, Policy based access control, J-Flow
Compliant Standards :IEEE 802.1ad, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at, IEEE 802.1p, IEEE 802.1D, IEEE 802.3ad (LACP), IEEE 802.1x
Expansion Slots
Expansion Slots :4 (total) / 4 (free) x expansion slot
Interface Provided
Interfaces :16 x 1000Base-T (PoE+) – RJ-45, 2 x USB – Type A
OS Provided
Type :JUNOS
Power Device
Type :Internal power supply
Installed Qty :1
Power Provided :360 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Power Consumption Operational :86 watt
Miscellaneous
TAA Compliant :Yes
Height (Rack Units) :1
Encryption Algorithm :DSA, 128-bit AES, SHA-2, 256-bit SHA, 256-bit AES, SHA-1, DES, MD5, IKEv2, RSA, PKI, Triple DES, IKE, DH
Authentication Method :XAUTH authentication, X.509 certificates, LDAP, SecurID, RADIUS
MTBF :9.92 years
Compliant Standards :ICSA Firewall certified, AS/ACIF S002, FIPS 140-2, ICES Class A, VCCI Class A ITE, UL 60950-1, CB, CISPR 22 Class A, CAN/CSA C22.2 No. 60950-1, AS/NZS 60950-1, TIA/EIA/IS-968, EN 60950-1, EN300-386, DOC, EMC, EN55022 Class A, EAL 4, FCC Class A certified, CS-03, EMI, ICSA IPSec certified, CTR 21, NEBS, EN 300 386, CAN/CSA-C22.2 No. 60950-1
Dimensions & Weight
Width :17.5 inch
Depth :15.2 inch
Height :1.7 inch
Weight :12.35 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90%
