SRX320-POE Technical Specifications

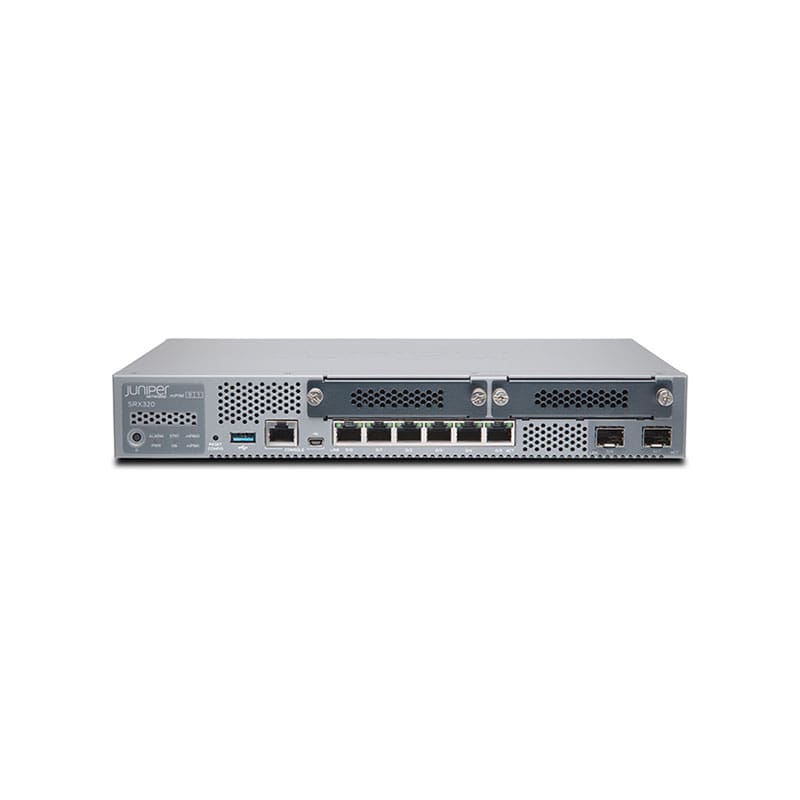

Juniper Networks SRX320 Services Gateway security appliance
-
- Netscreen
- Juniper, Juniper Networks
- Juniper Networks
- SRX320 Services Gateway
- 1
-
Chassis
- Front to back airflow
-
RAM
- 4 GB
-
Flash Memory
- 8 GB, 8 GB
-
Performance
- Firewall throughput (1518-byte packet size): 1 Gbps, Firewall throughput (64-byte packet size): 200 Kpps, Connection rate: 5000 connections per second, Firewall throughput (IMIX): 500 Mbps, VPN throughput (1400-byte packet size): 250 Mbps, IPS throughput: 100 Mbps, VPN throughput (IPSec): 80 Mbps
-
Capacity
- IPSec VPN tunnels: 256, MAC addresses: 15000, IPv6 routing table entries: 256000, IPv4 routing table entries: 256000, Maximum number of NAT rules: 1000, Security zones: 16, Maximum number of users: 50, Virtual routers: 32, Security policies: 1000, GRE tunnels: 256, Virtual interfaces (VLANs): 128, Concurrent sessions: 64000
-
Networking
- Security appliance
- Desktop
- 8
- Wired
- HDLC, MLPPP, Gigabit Ethernet, Frame Relay, MLFR, PPP, Fast Ethernet, Ethernet
- ECMP, OSPFv3, IGMP, Static IP routing, DVMRP, PIM-SSM, MPLS, IS-IS, BGP, IGMPv2, RIP-2, PIM-DM, OSPF, MSDP, PIM-SM, VRRP, RIP-1
- DHCP, PPPoE, DDNS, DNS, RSVP, IPSec
- SNMP, SSH, HTTP, CLI, Telnet
- PoE+
- Weighted Random Early Detection (WRED), Generic Routing Encapsulation (GRE), IPv4 support, Quality of Service (QoS), Anti-virus protection, DDos attack prevention, J-Flow, VPN support, Rapid Spanning Tree Protocol (RSTP) support, DHCP server, DHCP client, Label Distribution Protocol (LDP), IPSec NAT-Traversal (NAT-T), Inspect SSL Encrypted Traffic, Front to back airflow, Intrusion Prevention System (IPS), Spanning Tree Protocol (STP) support, LLDP support, NAT support, DiffServ Code Point (DSCP) support, URL filtering, Firewall protection, Anti-spam protection, PAT support, Virtual Private LAN Service (VPLS), Dead Peer Detection (DPD), MACsec support, DHCP relay, IPv6 support
- IEEE 802.1p, IEEE 802.1x
-
IP Telephony
- SDP
-
Expansion Slots
- 2 (total) / 2 (free) x expansion slot
-
Interface Provided
- 6 x 1000Base-T (PoE+) – RJ-45, 1 x USB 2.0 – Type A, 1 x console – RJ-45, 1 x mini-USB, 2 x 1000Base-X – SFP (mini-GBIC)
-
OS Provided
- JUNOS
-
Power Device
- External power adapter
- 27 watt
-
Miscellaneous
- SHA-1, MD5, Triple DES, 256-bit SHA, 256-bit AES, IKE, IKEv2, DES, SSL, PKI
- Secure Shell (SSH), X.509 certificates
- FCC Class A certified, RoHS2
-
Dimensions & Weight
- 11.8 inch
- 7.5 inch
- 1.7 inch
- 3.33 lbs
-
Environmental Parameters
- 32 degree Fahrenheit
- 104 degree Fahrenheit
- 10 – 90% (non-condensing)
