SRX4100-AC Juniper Networks SRX4100 Services Gateway security

SRX4100-AC Technical Specifications

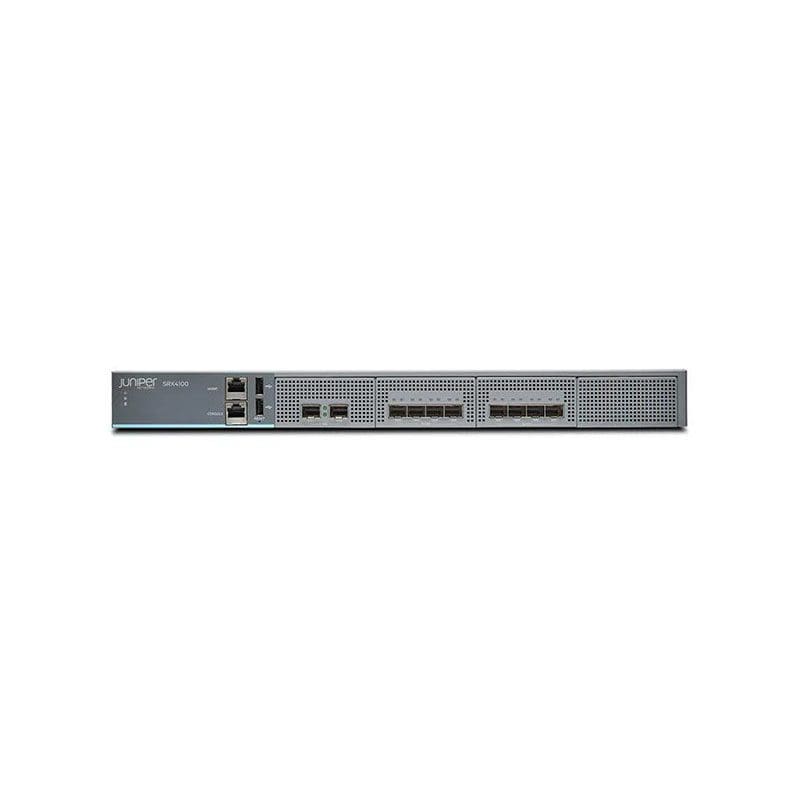

Juniper Networks SRX4100 Services Gateway security appliance

Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :SRX4100 Services Gateway
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
RAM
Installed Size :64 GB
Hard Drive
Type :SSD
Installed Qty :2
Capacity :240 GB
Performance
Performance :Firewall throughput: 7 Gbps, IPS throughput: 10 Gbps, VPN throughput (IPSec): 5 Gbps, Firewall throughput (IMIX): 20 Gbps, IPSes throughput (1400-byte packet size): 10 Gbps, Firewall throughput (64-byte packet size): 5 Gbps, Firewall throughput (1518-byte packet size): 40 Gbps, Application control (AVC) throughput: 18 Gbps, Connection rate: 175000 connections per second
Capacity
Capacity :Routing table entries: 2000000, Forwarding table entries: 2000000, Security policies: 60000, Concurrent sessions: 5000000
Networking
Type :Security appliance
Form Factor :Rack-mountable
Ports Qty :8
Connectivity Technology :Wired
Data Link Protocol :Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Ethernet
Routing Protocol :Static IPv4 routing, Static IPv6 routing, RIP-1, IGMP, OSPF, BGP, Bidirectional PIM, OSPFv3, IS-IS, RIP-2, IGMPv2
Network / Transport Protocol :PPPoE, DHCP, IPSec
Remote Management Protocol :SNMP, Telnet, SSH
Data Transfer Rate :10 GBps
Features :Front to back airflow, Source-Specific Multicast (SSM), Virtual Private LAN Service (VPLS), DiffServ Code Point (DSCP) support, Quality of Service (QoS), VLAN support, Dead Peer Detection (DPD), Equal-Cost Multipath (ECMP), IGMP filtering, J-Flow, DHCP server, Antivirus analysis, High Availability, DNS proxy, IPSec Virtual Private Network (VPN), Intrusion Prevention System (IPS), DDos attack prevention, Dynamic DNS server, IPSec NAT-Traversal (NAT-T), MPLS support, VPN support, NAT support, Virtual Route Redundancy Protocol (VRRP) support, DHCP client, Anti-spam protection, IPv6 support, DHCP relay, Firewall protection, Label Distribution Protocol (LDP), Weighted Random Early Detection (WRED), Generic Routing Encapsulation (GRE), Multicast Source Discovery Protocol (MSDP)
Compliant Standards :X.509, IEEE 802.1p
Interface Provided
Interfaces :2 x USB 2.0 – Type A, 1 x 1000Base-T (management) – RJ-45, 1 x console – RJ-45, 2 x 10Gb Ethernet – SFP+, 8 x 10Gb Ethernet – SFP+
OS Provided
Type :JUNOS
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Installed Qty :2
Power Provided :650 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Power Consumption Operational :200 watt
Miscellaneous
Height (Rack Units) :1
Encryption Algorithm :Triple DES, IKE, 256-bit SHA, IKEv2, SHA-1, 256-bit AES, 128-bit SHA, PKI
MTBF :12 years
Compliant Standards :RoHS2, FCC Class A certified
Dimensions & Weight
Width :17.5 inch
Depth :25 inch
Height :1.7 inch
Weight :28.99 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
