SRX4200-SYS-JB-DC Juniper Networks SRX4200 Services Gateways

SRX4200-SYS-JB-DC Technical Specifications

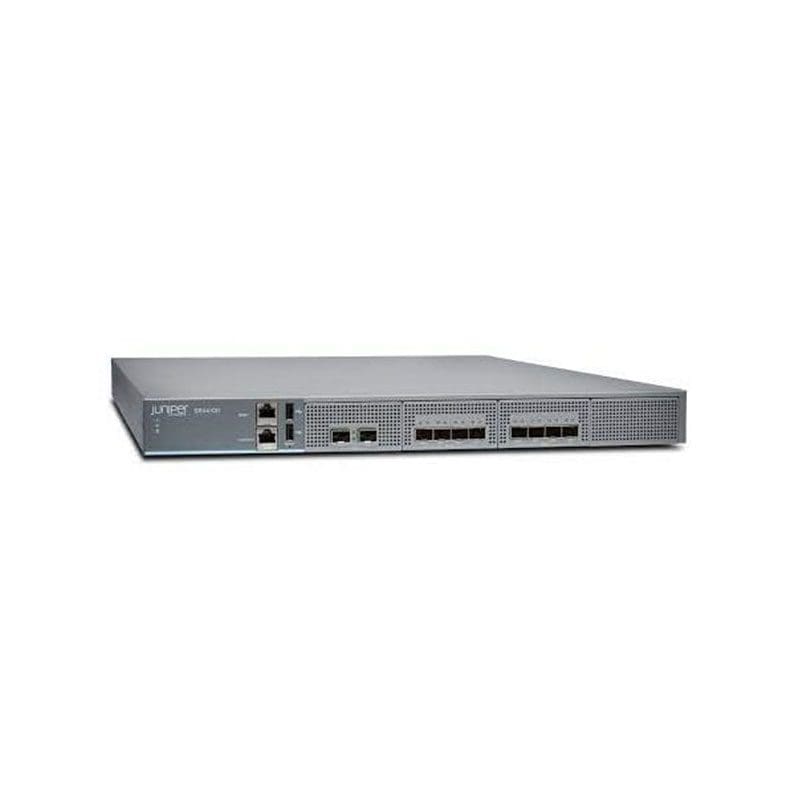

Juniper Networks SRX4200 Services Gateways security appliance

Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :SRX4200 Services Gateways
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
RAM
Installed Size :64 GB
Hard Drive
Type :SSD
Installed Qty :2
Capacity :240 GB
Performance
Performance :Connection rate: 350000 connections per second, IPS throughput (HTTP): 20 Gbps, IPSes throughput (1400-byte packet size): 20 Gbps, Firewall throughput (1518-byte packet size): 80 Gbps, VPN throughput (IPSec): 9.6 Gbps, Firewall throughput (64-byte packet size): 10 Gbps, Firewall throughput: 15 Gbps, Firewall throughput (IMIX): 40 Gbps, Application control (AVC) throughput: 35 Gbps
Capacity
Capacity :Security policies: 60000, Routing table entries: 2000000, Concurrent sessions: 10000000, Forwarding table entries: 2000000
Networking
Type :Security appliance
Form Factor :Rack-mountable
Ports Qty :8
Connectivity Technology :Wired
Data Link Protocol :Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Ethernet
Routing Protocol :Static IPv6 routing, IS-IS, RIP-2, BGP, OSPF, Static IPv4 routing, IGMPv2, Bidirectional PIM, IGMP, RIP-1, OSPFv3
Network / Transport Protocol :IPSec, PPPoE, DHCP
Remote Management Protocol :SNMP, Telnet, SSH
Data Transfer Rate :10 GBps
Features :DiffServ Code Point (DSCP) support, DHCP server, DDos attack prevention, DNS proxy, Dynamic DNS server, J-Flow, Quality of Service (QoS), Virtual Route Redundancy Protocol (VRRP) support, IPSec Virtual Private Network (VPN), VLAN support, Source-Specific Multicast (SSM), DHCP relay, IPv6 support, Antivirus analysis, Multicast Source Discovery Protocol (MSDP), Firewall protection, MPLS support, Dead Peer Detection (DPD), Label Distribution Protocol (LDP), NAT support, Generic Routing Encapsulation (GRE), Weighted Random Early Detection (WRED), Front to back airflow, Equal-Cost Multipath (ECMP), Virtual Private LAN Service (VPLS), IGMP filtering, High Availability, VPN support, IPSec NAT-Traversal (NAT-T), DHCP client, Intrusion Prevention System (IPS), Anti-spam protection
Compliant Standards :IEEE 802.1p, X.509
Interface Provided
Interfaces :8 x 10Gb Ethernet – SFP+, 1 x console – RJ-45, 2 x 10Gb Ethernet – SFP+, 2 x USB 2.0 – Type A, 1 x 1000Base-T (management) – RJ-45
OS Provided
Type :JUNOS
Software
Type :Junos Software Base
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Installed Qty :2
Power Provided :650 watt
Nominal Voltage :DC -48 V
Power Consumption Operational :200 watt
Miscellaneous
Color Category :Gray
Height (Rack Units) :1
Encryption Algorithm :SHA-1, DES, Triple DES, IKEv2, PKI, 128-bit SHA, 256-bit AES, IKE, 256-bit SHA
MTBF :12 years
Compliant Standards :RoHS2, Triple DES, FCC Class A certified
Dimensions & Weight
Width :17.5 inch
Depth :25 inch
Height :1.7 inch
Weight :28.79 lbs
Dimensions & Weight (Shipping)
Shipping Weight :47.49 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
