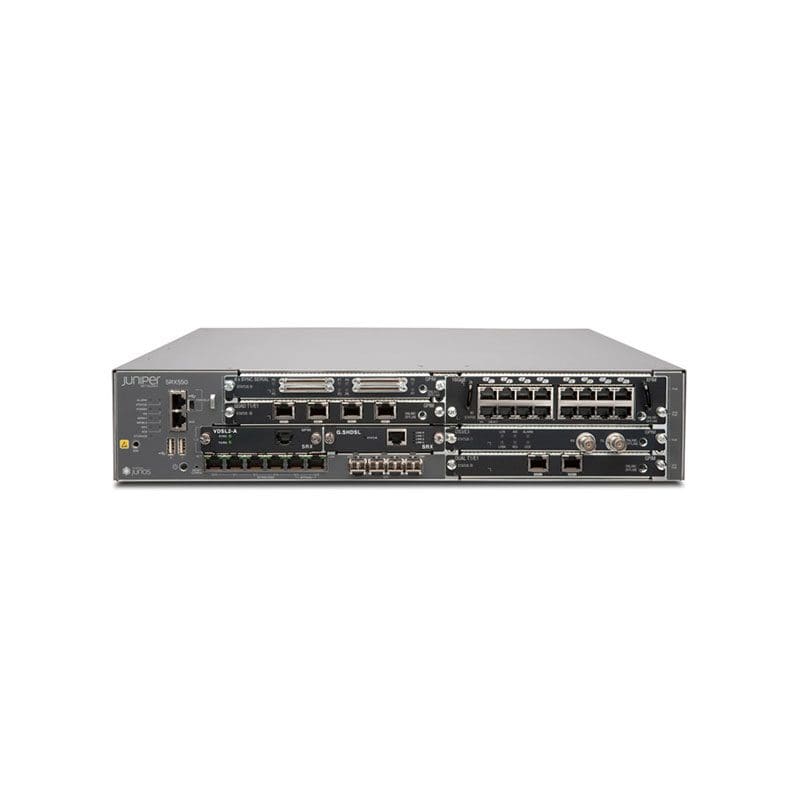

SRX550-645DP-M-TAA Juniper Networks SRX550 Services Gateway

SRX550-645DP-M-TAA Technical Specifications

Juniper Networks SRX550 Services Gateway

Networking
Compliant Standards :IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad (LACP)
Connectivity Technology :Wired
Data Link Protocol :Ethernet, Fast Ethernet, Frame Relay, FRF.12, FRF.15, FRF.16, Gigabit Ethernet, HDLC, MLFR, MLPPP, PPP, RS-232, RS-449, V.35, X.21
Features :3G/4G USB Dongle Support, Content filtering, DDos attack prevention, DHCP relay, DHCP server, DiffServ Code Point (DSCP) support, DiffServ support, DoS attack prevention, Firewall protection, IGMP snooping, IPv4 support, IPv6 support, J-Flow, Link Fragmentation and Interleaving (LFI), LLDP support, Modular design, Multiple Spanning Tree Protocol (MSTP) support, NAT support, PAT support, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Syslog support, Tagged VLAN, VPN support, Weighted Random Early Detection (WRED)
Form Factor :Rack-mountable
Network Transport Protocol :DHCP, IPSec, PPPoA, PPPoE, RSVP
Routing Protocol :BGP, DVMRP, ECMP, GRE, IGMP, IGMPv2, IGMPv3, IS-IS, MLD, MPLS, MSDP, OSPF, OSPFv3, PIM-DM, PIM-SM, PIM-SSM, RIP-1, RIP-2, RIPng, Static IP routing, VRRP
Switching Protocol :Ethernet, Frame Relay
Type :Security appliance
Interface Provided
Connector Type :RJ-45
Qty :6
Type :1000Base-T
Connector Type :SFP (mini-GBIC)
Qty :4
Type :1000Base-X
Connector Type :Type A
Qty :2
Type :USB
