SRX5800E-BASE-AC Technical Specifications

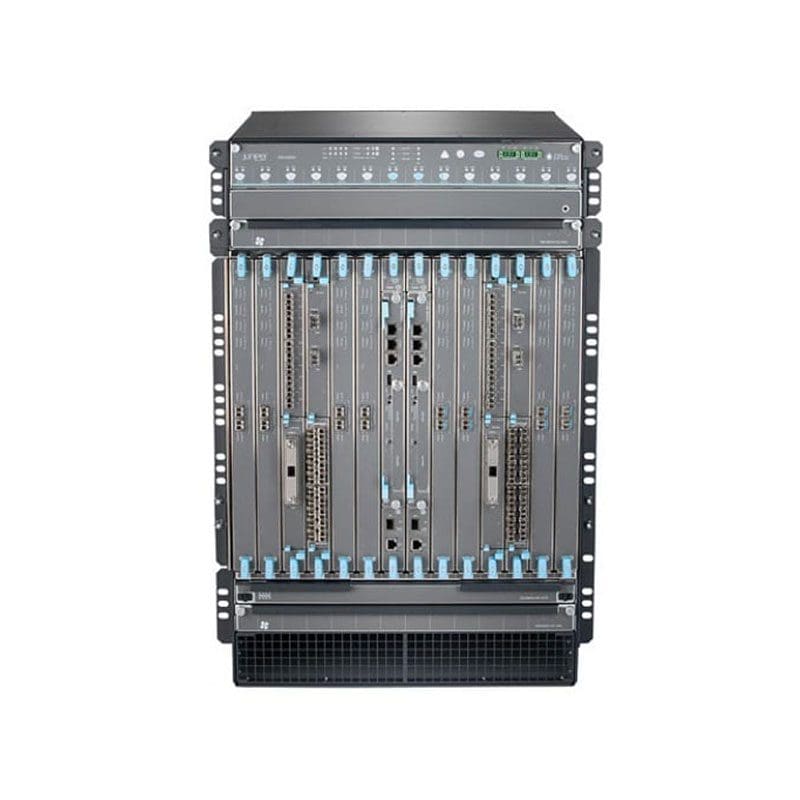

Juniper Networks SRX 5800 security appliance
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :SRX 5800
Packaged Quantity :1
Chassis
Built-in Devices :Midplane
Processor
Type :Xeon
Installed Qty :1
Manufacturer :Intel
Clock Speed :1.8 GHZ
RAM
Installed Size :16 GB
Flash Memory
Installed Size :4 GB, 4 GB
Hard Drive
Type :SSD
Capacity :128 GB
Optical Storage
Type :None
Performance
Performance :VPN throughput (IPSec): 200 Gbps, IPS throughput: 100 Gbps, Firewall throughput: 300 Gbps
Capacity
Capacity :Concurrent sessions: 1000000, New connections per second: 450000
Networking
Type :Security appliance
Form Factor :Rack-mountable
Connectivity Technology :Wired
Routing Protocol :OSPFv3, IPv4-to-IPv6 Multicast, Policy-based routing (PBR), BGP, OSPF, RIP-2, Bidirectional Forwarding Detection (BFD), ECMP, Static IP routing, RIP-1
Network / Transport Protocol :IPSec, DHCP
Remote Management Protocol :CLI, SSH, SNMP 2, HTTPS, HTTP, SNMP 3, Telnet
Features :IPSec passthrough, Quality of Service (QoS), Firewall protection, Modular design, DoS attack prevention, IPv6 support, High Availability, DDos attack prevention, 2 fans
Expansion Slots
Expansion Slots :2 (total) / 0 (free) x Switch Control Board (SCB), 12 (total) / 12 (free) x expansion slot
OS Provided
Type :JUNOS
Power Device
Type :Internal power supply
Power Redundancy :Yes
Installed Qty :2
Max Supported Qty :4
Nominal Voltage :AC 200/240 V
Miscellaneous
Height (Rack Units) :16
Encryption Algorithm :SHA-1, DH, IKE, AES, MD5, DES, PKI
Authentication Method :RADIUS, X.509 certificates
Compliant Standards :NEBS level 3, EMC
Dimensions & Weight
Width :17.5 inch
Depth :23.5 inch
Height :27.8 inch
