SSDPF2KX076T1OZ Technical Specifications

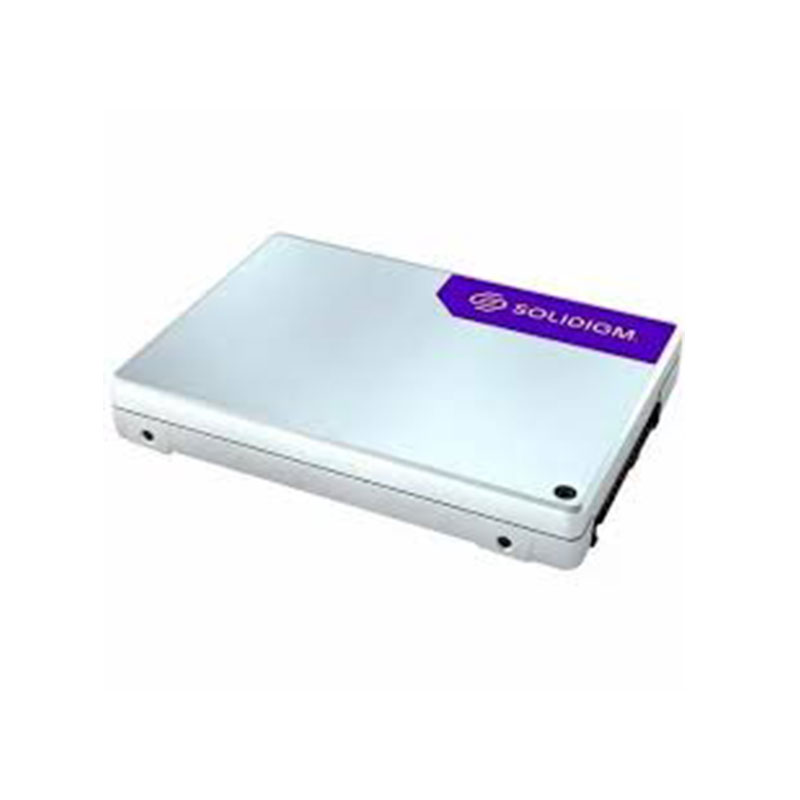

Solidigm D7-P5520 7.68TB PCI Express 4.0 NVMe U.2 2.5-inch Internal Solid State Drive (SSD)
Manufacturer : SOLIDIGM
Manufacturer Part : SSDPF2KX076T1OZ
Product Series : D7-p5520
Product Name : D7-p5520 Tlc Solid State Drive.
Technical Information :
Storage Capacity : 7.68 Tb
Interface Type : Pcie 4.0 X4, Nvme
Form Factor : U.2 15mm
Lithography : 144l Tlc 3d Nand
Shock : 1000 G/0.5 Msec
Mtbf : 2000000 Hours
Performance :
Sequential Bandwidth – 100% Read (up To) : 7100 Mb/s
Sequential Bandwidth – 100% Write (up To) : 4200 Mb/s
Random Read (100% Span) : 1100000 Iops (4k Blocks)
Random Write (100% Span) : 220000 Iops (4k Blocks)
Advanced Technologies :
Enhanced Power Loss Data Protection : Yes
Hardware Encryption : Aes 256 Bit
Temperature Monitoring And Logging : Yes
End-to-end Data Protection : Yes
