ST-SAN-AR442F8R Technical Specifications

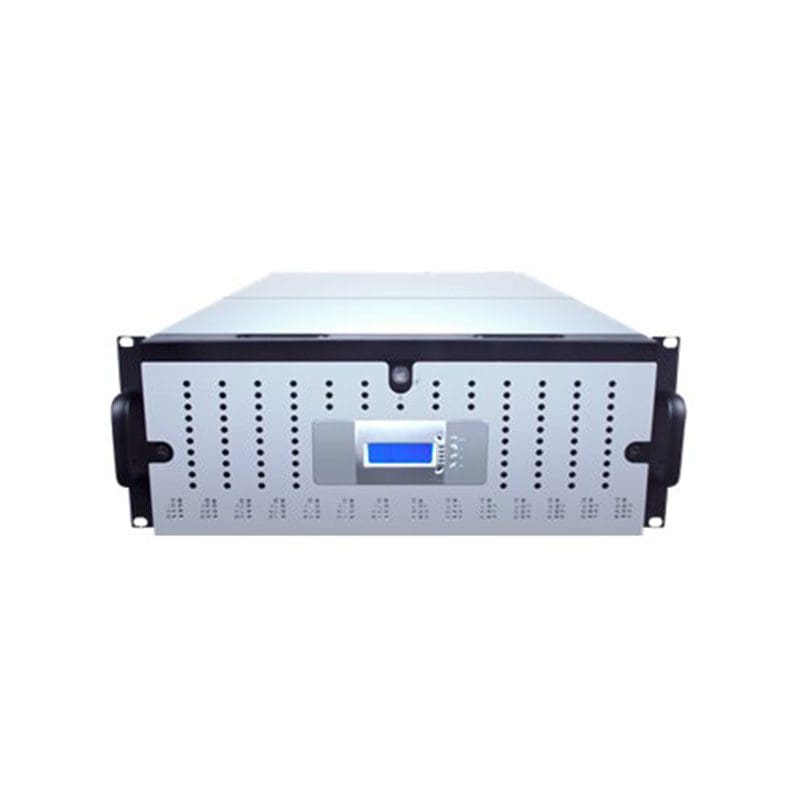

Sans Digital AccuRAID Series AR442F8R Hard Drive Array
Brand : Sans Digital
Manufacturer Part Number : ST-SAN-AR442F8R
Type RAID (8Gb Fibre Channel)
Interface Type SATA 6Gb/s / SAS 6Gb/s
Data Transfer Rate 600 MBps
Max Storage Devices Qty 16
RAID Level RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 30, RAID 50, RAID 5 hot spare, RAID 6 hot spare, RAID 60, RAID 50 hot spare, RAID 10 hot spare, RAID 1 hot spare
Manufacturer Warranty
Service & Support Limited warranty – 3 years
General
Device Type Hard drive array
Enclosure Type Rack-mountable – 4U
Expansion Bays 42 (total) / 42 (free) x hot-swap – 3.5″
Interfaces 1 x serial RS-232 (management) – 9 pin D-Sub (DB-9) ¦ 1 x Ethernet (management) – RJ-45 ¦ 8 x 8Gb Fibre Channel
Max Supported Capacity 126 TB
HDD Array External Interface 8Gb Fibre Channel
Maximum LUNs 1024
