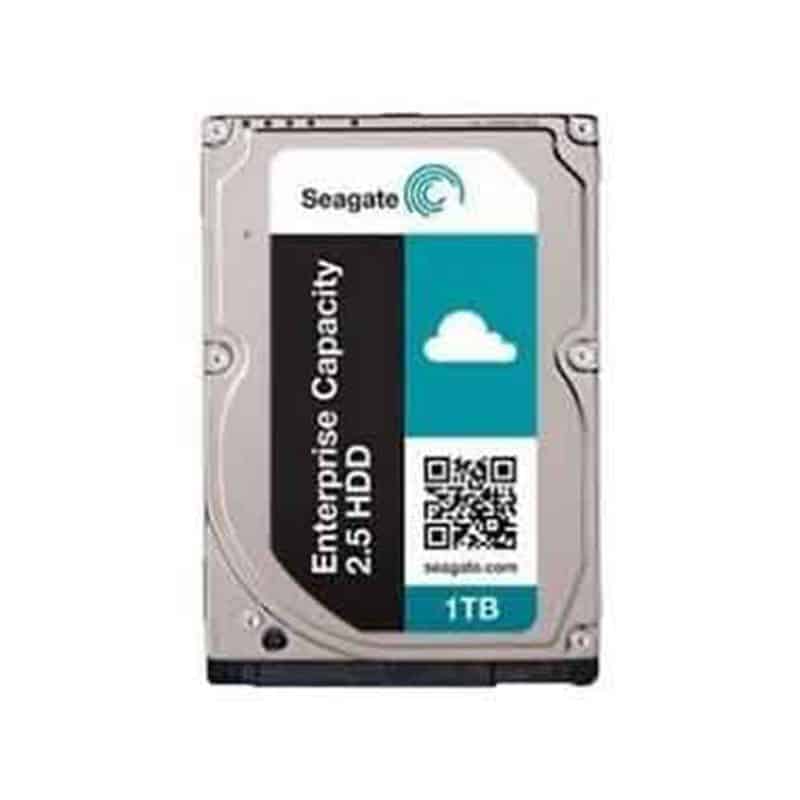

ST1000NX0313 Seagate 1TB 7.2Krpm 12GBITS 128MB Buffer Hard Drive

ST1000NX0313 Technical Specifications

Seagate Enterprise Capacity V.3 1TB 7.2K RPM SAS-12GBITS 128MB Buffer 512E 2.5INCH Hard Disk Drive

GENERAL INFORMATION :
Manufacturer : Seagate
Manufacturer Model : ST1000NX0313
Product Line : Enterprise Capacity V.3
Product Name : Enterprise Capacity V.3 1TB Hard Drive

BEST-FIT APPLICATIONS :
Storage-Hungry Business Applications
Storage Area Networks (SAN) And Network Attached Storage (NAS)
Maximum-Capacity Entry-Level Servers And Blade Servers
Rich Media Content Storage
Enterprise Backup And Restore—D2D, Virtual Tape
Cloud Computing

KEY FEATURES :
Storage Capacity : 1 TB
Enclosure : Internal
Interface : SAS-12GBITS
Bytes Per Sector : 512e
Drive Dimensions : 2.5 Inch
MTBF : 1.4 Million Hours
Powerchoice™ On-Demand Power Option : Yes
Protection Information : Yes
Low Halogen : Yes
Raid Rebuild™ : Yes
AFR : 0.63%

DRIVE PERFORMANCE :
Max. Sustained Transfer Rate : 136 MBPS
Average Latency : 4.16 MS
Interface Access Speed (GB/S) : 12.0, 6.0, 3.0
Interface Ports : Single
Buffer : 128 MB
Rotational Speed : 7200 RPM
