SUA1500R2X93 Technical Specifications

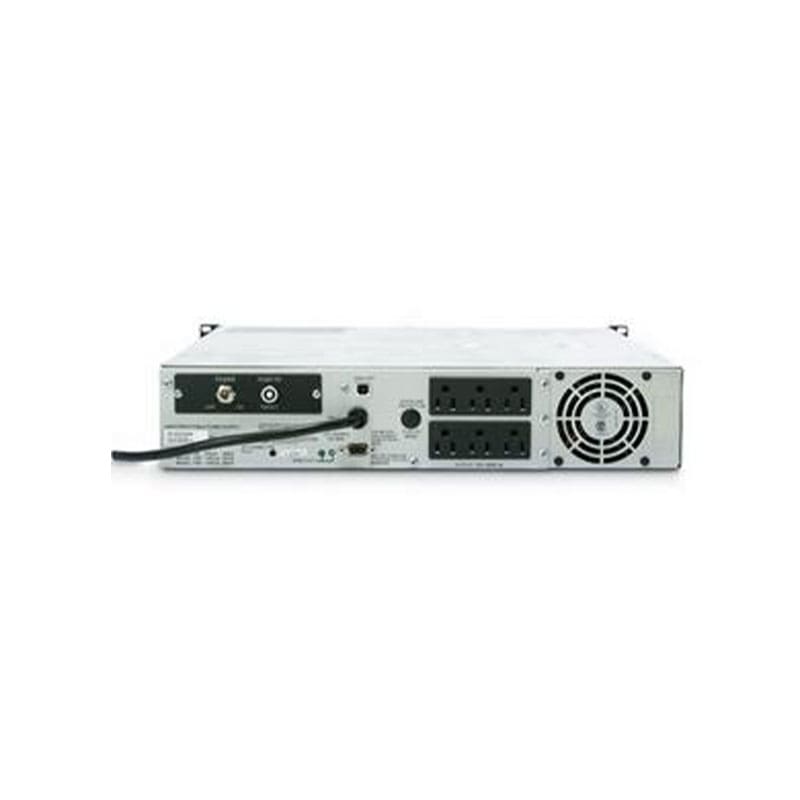

APC Smart -UPS 1500VA RM 2U 120V Shipboard
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS RM
Model :1500VA Shipboard
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Interface Provided
Interfaces :1 x management (RS-232) – 9 pin D-Sub (DB-9)
Cable Details
Cables Included :Power cable – integrated – 8 ft, Serial cable – external
Software
Type :APC PowerChute Smart-UPS Bundle, Drivers & Utilities
Power Device
Form Factor :Rack-mountable
UPS Technology :Line interactive
Voltage Provided :AC 120 volt
UPS Output Waveform :Sinewave
Power Provided :980 watt
Power Capacity (VA) :1440 volt ampere per kilogram
Voltage Required :AC 120 volt
Input Voltage Range :AC 82 – 144 V
Frequency Required :50/60 hertz
Input Connector Type :Power NEMA 5-15
Input Connector Qty :1
Output Connector Type :Power NEMA 5-15
Output Connector Qty :4
Surge Suppression :Yes
Surge Energy Rating :459 joules
Power Output Connectors Details
Power Output Connectors Details :4 x power NEMA 5-15
Babttery
Run Time (Up To) :7.4 minute (time unit)
Load Type :At full load
Supported Battery
Technology :Lead acid
Run Time Details
Run Time (Up To) :7.4 min at full load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Rack Mounting Kit :Included
Height (Rack Units) :2
Compliant Standards :UL 1778, UL 1449
Features :LED display, Audible alarm
Dimensions & Weight
Width :19 inch
Depth :18 inch
Height :3.5 inch
Weight :63.05 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
