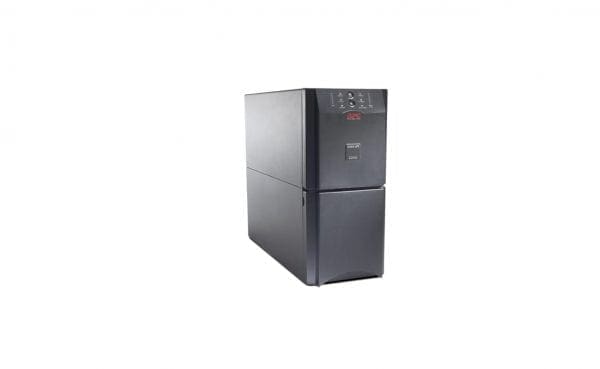

SUA2200X115 Technical Specifications
APC Smart-UPS 2200VA 120V W/L5-20P, (4) 5-15R, (2) 5ALT-20R, & (1) L5-20R with USB
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Output
Max Configurable Power (Watts)
1.98kWatts / 2200VA
Efficiency at Full Load
95.0 %
Output Voltage Distortion
Less than 5% at full load
Output Frequency (sync to mains)
47 – 63 Hz
Load Crest Factor
Topology Line Interactive
Waveform type Sine wave
Input
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input voltage range for main operations
82 – 144V
Input voltage adjustable range for mains operation
75 – 154V
Efficiency at Full Load
95.0 %
Batteries & Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time 3hour(s)
Replacement Battery RBC55
Expected Battery Life (years) 3 – 5
RBC Quantity 1
Battery Volt-Amp-Hour Capacity 816
Runtime
View Runtime Graph
View Runtime Chart
Communications & Management
Interface Port(s)
DB-9 RS-232, USB
Control panel
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Available SmartSlot™ Interface Quantity 1
Surge Protection and Filtering
Surge energy rating
480Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height
17.0inches (432MM, 43.2CM)
Maximum Width
7.7inches (196MM, 19.6CM)
Maximum Depth
21.5inches (546MM, 54.6CM)
Net Weight
112.0lbs. (50.92KG)
Shipping weight
134.0lbs. (60.92KG)
Shipping Height
22.0inches (559MM, 55.9CM)
Shipping Width
15.0inches (381MM, 38.1CM)
Shipping Depth
30.0inches (762MM, 76.2CM)
Color Black
Environmental
Operating Temperature
32 – 104 °F (0 – 40 °C)
Operating Relative Humidity
0 – 95 %
Operating Elevation
0-10000ft (0-3000meters)
Storage Temperature
-15 – 45 °C
Storage Relative Humidity
0 – 95 %
Storage Elevation
0-50000ft (0-15000meters)
Audible noise at 1 meter from surface of unit
45.0dBA
Online thermal dissipation
275.0BTU/hr
