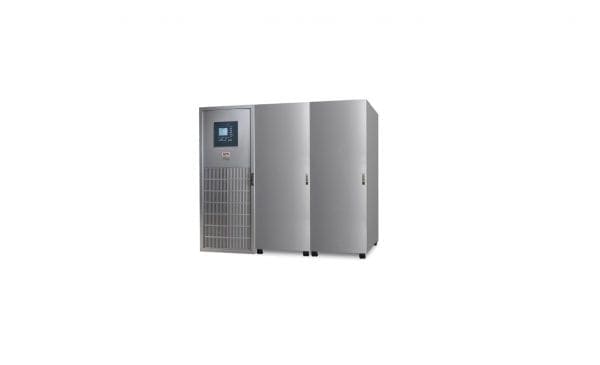

SUG540A90UL G5k 40 kVA UPS 480V ADJ BATT UL924 BACKUP

SUG540A90UL Technical Specifications

G5k 40 kVA UPS 480V ADJ BATT UL924 BACKUP 90 MIN

Output
Max Configurable Power (Watts)
36.0kWatts / 40.0kVA
Efficiency at Full Load
93.2 %
Output Voltage Distortion
Less than 2%
Output Frequency (sync to mains)
60 Hz
Output Frequency (not synced)
60Hz +/- 0.1% for 60Hz nominal
Load Crest Factor
3 : 1
Topology
Double Conversion Online
Waveform type
Sine wave
Overload Operation
10 minutes @ 125% and 60 seconds @ 150%
Maximum Output Current
190
Output Voltage THD
< 1% linear load and < 2.5% nonlinear load
Output Voltage Tolerance
+/- 1% static and +/- 2 % at 100% load step
Bypass
Internal Bypass (Automatic and Manual), Optional External Bypass
Input
Input frequency
60 Hz – programmable +/- 0.5 / 1 / 2 / 4 / 6 / 8%
Input voltage range for main operations
408 – 552 (480)V
Input voltage adjustable range for mains operation
408 – 552 (480V)V
Efficiency at Full Load
93.2 %
Input Total Harmonic Distortion
Less than 5% for full load
Type of Input Protection Required
3-pole breaker
Other Input Voltages
600
Maximum Short Circuit Withstand (Icw)
20.0kAmps
Input Power Factor at Full Load
1.0
Batteries & Runtime
Battery type
VRLA
Communications & Management
Control panel
Multi-function LCD status and control console
Emergency Power Off (EPO)
Optional
Available SmartSlot™ Interface Quantity
3
Physical
Maximum Height
75.0inches (1905MM, 190.5CM)
Maximum Width
94.3inches (2395MM, 239.5CM)
Maximum Depth
32.0inches (813MM, 81.3CM)
Net Weight
4120.0lbs. (1872.73KG)
Shipping weight
4190.0lbs. (1904.55KG)
Shipping Height
76.0inches (1930MM, 193.0CM)
Shipping Width
98.0inches (2489MM, 248.9CM)
Shipping Depth
33.0inches (838MM, 83.8CM)
Environmental
Operating Temperature
32 – 104 °F (0 – 40 °C)
Operating Relative Humidity
5 – 90 %
Operating Elevation
0-3333ft (0-999.9meters)
Storage Temperature
-20 – 45 °C
Storage Relative Humidity
5 – 90 %
Storage Elevation
0-30000ft (0-9000meters)
Audible noise at 1 meter from surface of unit
66.0dBA
Online thermal dissipation
11602.0BTU/hr
