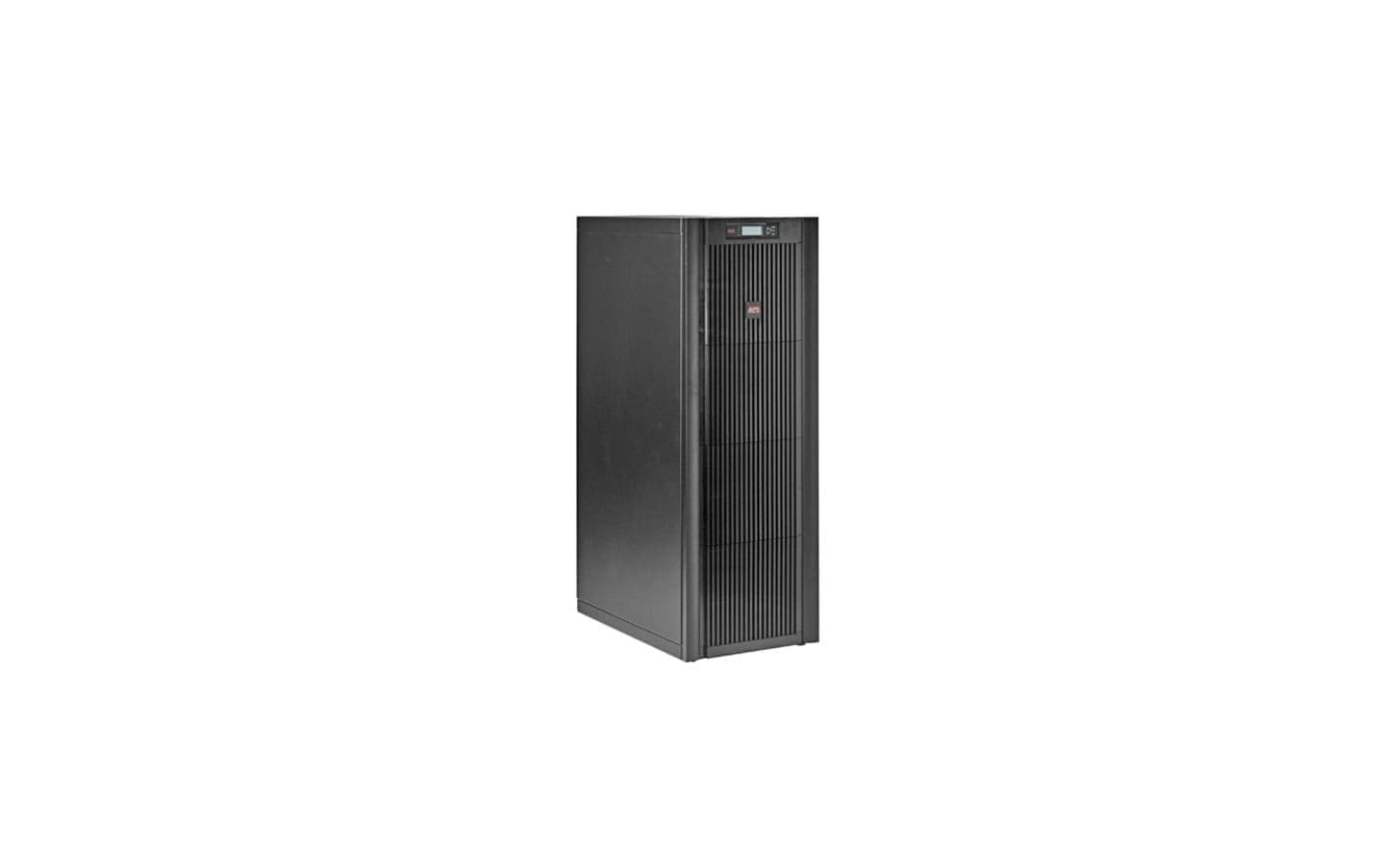

SUVTP10KF4B4S APC Smart-UPS VT 10kVA 208V w/4 Batt Mod.

SUVTP10KF4B4S Overview

APC Smart-UPS VT 10kVA 208V w/4 Batt Mod., Start-Up 5X8, Int Maint Bypass, Parallel Capable
Effective 10-40kVA 3 phase UPS power protection against downtime and data loss for mission critical applications.
Includes: Battery modules ship installed, Bolt Down Brackets, CD with software, Installation Guide, Network Management Card, Power modules ship installed, Smart UPS signalling RS-232 cable, Start up included, User Manual


Buy Now
Availability: In Stock

SUVTP10KF4B4S Technical Specifications

APC Smart-UPS VT 10kVA 208V w/4 Batt Mod., Start-Up 5X8, Int Maint Bypass, Parallel Capable

Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS VT
Model :10kVA with 4 Battery Modules
Packaged Quantity :1
Subcategory :UPS
Product Type :UPS
Remote Management Interface :RS-232, Ethernet 10/100
Remote Management Protocol :HTTP, Telnet, SNMP, HTTPS
Expansion Slots
Expansion Slots :1 (total) / 0 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (RS-232) – 9 pin D-Sub (DB-9), 1 x management (Ethernet) – RJ-45, 1 x EPO (emergency power off)
Type :Drivers & Utilities
Power Device
Form Factor :External
UPS Technology :On-line
Voltage Provided :AC 120/208/220 volt
Voltage Provided Margin :± 5%
Frequency Provided :57 – 63 hertz
UPS Output Waveform :Sinewave
Power Provided :8 kilograms per millimetere
Power Capacity (VA) :10000 volt ampere per kilogram
Voltage Required :AC 208/220 volt
Input Voltage Range :AC 165 – 240 V
Frequency Required :40 – 70 hertz
Input Wiring :3-phase
Input Connector Type :Hardwire 5-wire (3PH + N + G)
Input Connector Qty :1
Output Connector Type :Hardwire 5-wire (3PH + N + G), Terminal block (screw)
Output Connector Qty :2
Surge Suppression :Yes
Circuit Protection :Circuit breaker
Power Device Features :Built-in maintenance bypass, LCD display, Built-in static bypass, Emergency power off, Parallel Capability, Audible alarm
Power Output Connectors Details
Power Output Connectors Details :1 x hardwire 5-wire (3PH + N + G), 1 x terminal block (screw)
Voltage Provided :192 volt
Run Time (Up To) :46 minute (time unit)
Load Type :At full load
Recharge Time :5 Hours
Run Time Details
Run Time (Up To) :46 min at full load
Batteries Qty :4
Supported Batteries Qty :4
Battery Technology :Lead acid
Color :Black
Color Category :Black
Included Accessories :Bolt down brackets
Compliant Standards :UL 1778, FCC Part 15, ISO 14001, NEMA Type 1, IEC 62040-1-1, cUL, ISO 9001, FCC Class A certified, EN 50091-2, IEC 62040-3
Dimensions & Weight
Width :20.6 inch
Depth :32 inch
Height :59.1 inch
Weight :1320.56 lbs
Dimensions & Weight (Shipping)
Shipping Width :24.8 inch
Shipping Depth :41.7 inch
Shipping Height :64.6 inch
Shipping Weight :1388.9 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :54 dBA
