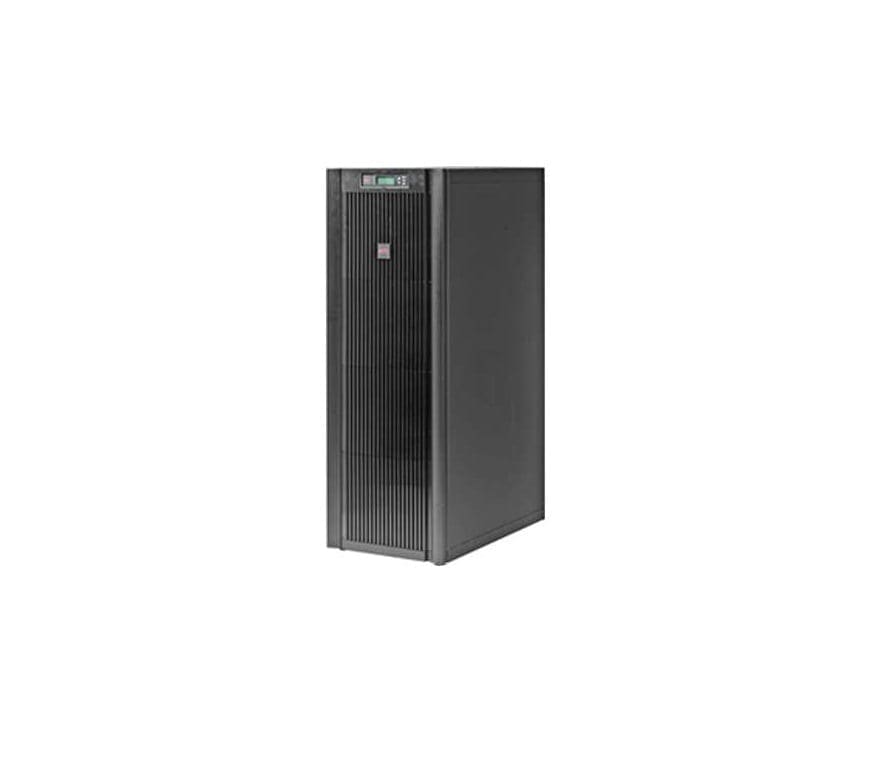

SUVTP20KF3B4S APC Smart-UPS VT 20kVA 208V w/3 Batt Mod

SUVTP20KF3B4S Overview

APC Smart-UPS VT 20kVA 208V w/3 Batt Mod Exp to 4, Start-Up 5X8, Int Maint Bypass, Parallel Capable
Effective 10-40kVA 3 phase UPS power protection against downtime and data loss for mission critical applications.
Includes: Battery modules ship installed, Bolt Down Brackets, CD with software, Installation Guide, Network Management Card, Power modules ship installed, Smart UPS signalling RS-232 cable, Start up included, User Manual

$13,992

Buy Now
Availability: In Stock
SKU:SUVTP20KF3B4S
Brand:

SUVTP20KF3B4S Technical Specifications

APC Smart-UPS VT 20kVA 208V w/3 Batt Mod

Output
Max Configurable Power (Watts)
16.0kWatts / 20.0kVA
Output Voltage Note
Configurable for 208 and 220V – 3 Phase
Output Voltage Distortion
Less than 5% at full load
Output Frequency (sync to mains)
57 – 63 Hz for 60 Hz nominal
Output Frequency (not synced)
60Hz +/- 0.1% for 60Hz nominal
Other Output Voltages
220
Load Crest Factor
Unlimited
Topology
Double Conversion Online
Waveform type
Sine wave
Maximum Output Current
61
Bypass
Built-in Maintenance Bypass, Built-in Static Bypass
Input
Input frequency
40 – 70 Hz
Input voltage range for main operations
165 – 240V
Other Input Voltages
220
Input Power Factor at Full Load
0.98
Batteries & Runtime
Battery type
VRLA
Included Battery Modules
3
Typical recharge time
5hour(s)
Nominal Battery Voltage
+/-192 V (split battery referenced to neutral)
Battery Slots Empty
1
Expected Battery Life (years)
3 – 5
RBC Quantity
1
Battery Charge Power (Watts)
1.473kWatts
Extendable Run Time
1
Battery Volt-Amp-Hour Capacity
7378
Extended Run Options
APC-Smart-UPS-VT-20kVA-208V-w-3-Batt-Mod-Exp-to-4-Start-Up-5X8-Int-Maint-Bypass-Parallel-Capable
End of Discharge Battery Voltage
+/-154 V
Efficiency
View Efficiency Graph
Communications & Management
Interface Port(s)
DB-9 RS-232, Smart-Slot
Pre-Installed SmartSlotâ„¢ Cards
AP9631
Control panel
Multi-function LCD status and control console
Audible Alarm
Audible and visible alarms : configurable delays
Emergency Power Off (EPO)
Yes
Physical
Maximum Height
59.0inches (1499MM, 149.9CM)
Maximum Width
20.6inches (523MM, 52.3CM)
Maximum Depth
32.01inches (813MM, 81.3CM)
Net Weight
1181.0lbs. (536.82KG)
Shipping weight
1249.0lbs. (567.73KG)
Shipping Height
64.7inches (1643MM, 164.3CM)
