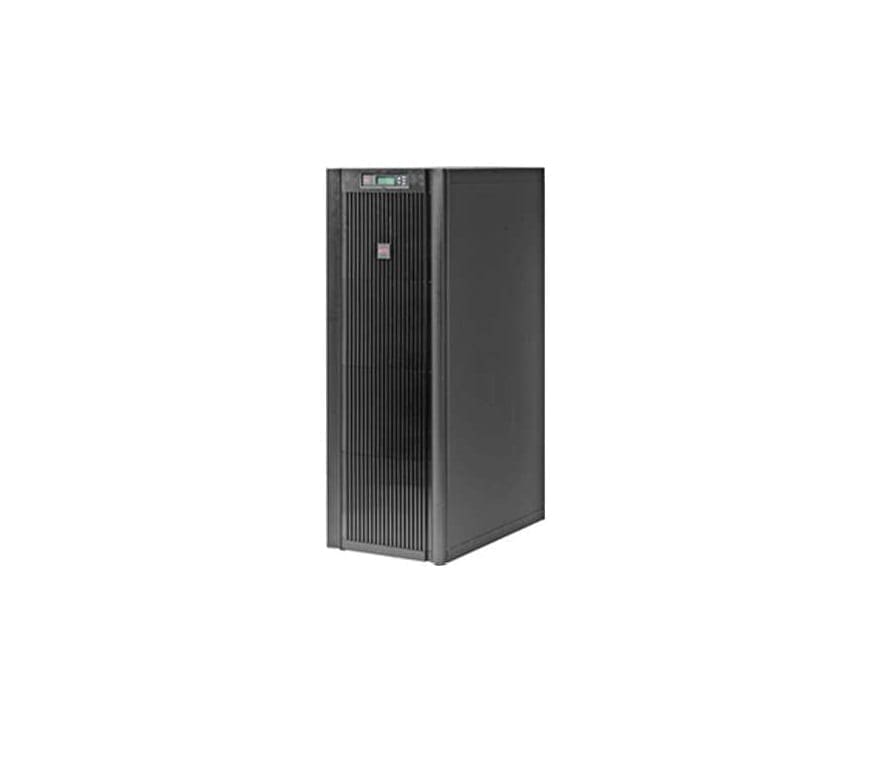

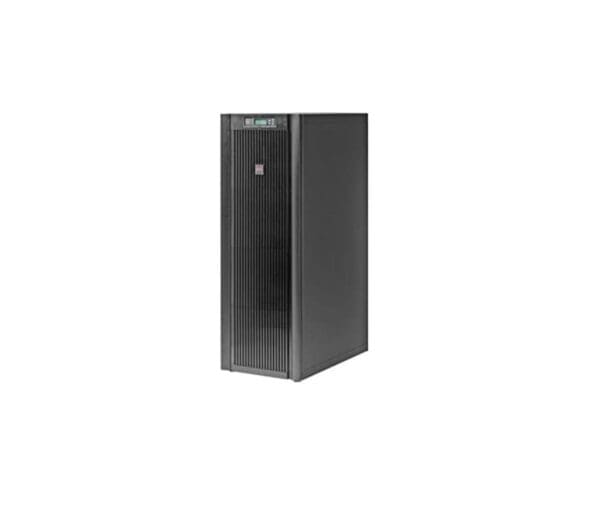

SUVTP20KF4B4S Technical Specifications
APC Smart-UPS VT 20kVA 208V w/4 Batt
Output
Max Configurable Power (Watts)
16.0kWatts / 20.0kVA
Output Voltage Note
Configurable for 208 and 220V – 3 Phase
Output Voltage Distortion
Less than 5% at full load
Output Frequency (sync to mains)
57 – 63 Hz for 60 Hz nominal
Output Frequency (not synced)
60Hz +/- 0.1% for 60Hz nominal
Other Output Voltages
220
Load Crest Factor
Unlimited
Topology
Double Conversion Online
Waveform type
Sine wave
Maximum Output Current
61
Bypass
Built-in Maintenance Bypass, Built-in Static Bypass
Input
Input frequency
40 – 70 Hz
Input voltage range for main operations
165 – 240V
Other Input Voltages
220
Input Power Factor at Full Load
0.98
Batteries & Runtime
Battery type
VRLA
Included Battery Modules
2
Typical recharge time
5hour(s)
Nominal Battery Voltage
+/-192 V (split battery referenced to neutral)
Expected Battery Life (years)
3 – 5
RBC Quantity
2
Battery Charge Power (Watts)
1.966kWatts
Extendable Run Time
1
Battery Volt-Amp-Hour Capacity
9849
Extended Run Options
APC-Smart-UPS-VT-20kVA-208V-w-4-Batt-Mod-Start-Up-5X8-Internal-Maint-Bypass-Parallel-Capability
End of Discharge Battery Voltage
+/-154 V
Runtime
View Runtime Graph
View Runtime Chart
Efficiency
View Efficiency Graph
Communications & Management
Interface Port(s)
DB-9 RS-232, Smart-Slot
Pre-Installed SmartSlot™ Cards
AP9631
Control panel
Multi-function LCD status and control console
Audible Alarm
Audible and visible alarms : configurable delays
Emergency Power Off (EPO)
Yes
Physical
Maximum Height
59.0inches (1499MM, 149.9CM)
Maximum Width
20.6inches (523MM, 52.3CM)
Maximum Depth
32.01inches (813MM, 81.3CM)
