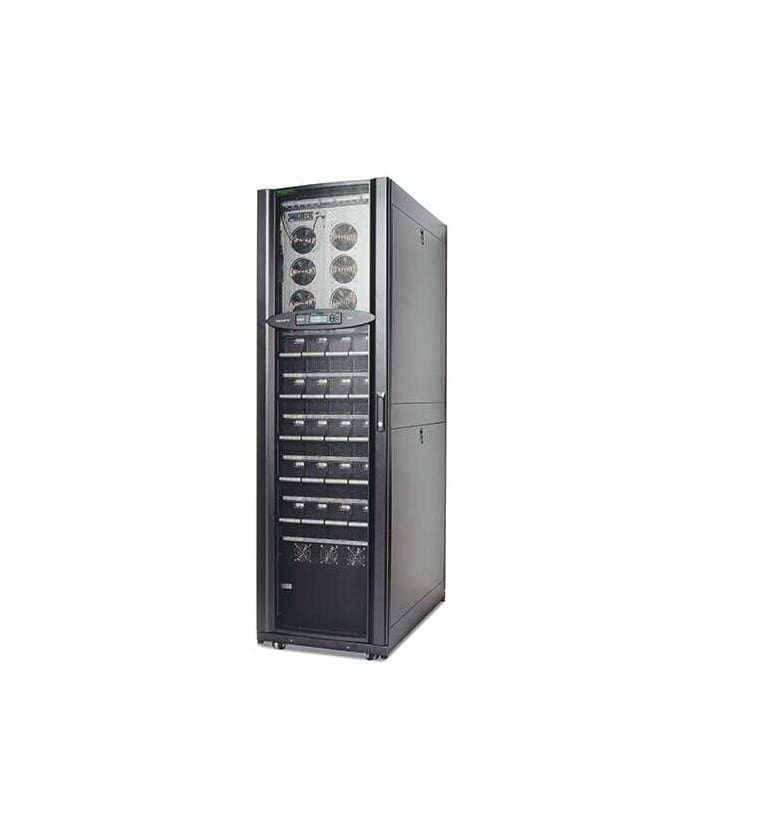

SUVTRT20KF5B5S APC Smart-UPS VT rack mounted 20kVA 208V

SUVTRT20KF5B5S Overview

APC Smart-UPS VT rack mounted 20kVA 208V w/ISO XFMR w/5 batt mod., w/PDU & startup
Effective 10-40kVA 3 phase UPS power protection against downtime and data loss for mission critical applications.
Includes: Installation Guide, Network Management Card, Power modules ship installed, Smart UPS signalling RS-232 cable, Start up included, User Manual

$21,820

Buy Now
Availability: In Stock
SKU:SUVTRT20KF5B5S
Brand:

SUVTRT20KF5B5S Technical Specifications

APC Smart-UPS VT rack mounted 20kVA 208V

Output
Max Configurable Power (Watts)
16.0kWatts / 20.0kVA
Output Voltage Note
Configurable for 200 : 208 or 220V 3 Phase nominal output voltage
Efficiency at Full Load
93.0 %
Output Voltage Distortion
Less than 5% at full load
Output Frequency (sync to mains)
57 – 63 Hz for 60 Hz nominal
Output Frequency (not synced)
60Hz +/- 0.1% for 60Hz nominal
Other Output Voltages
220
Load Crest Factor
Unlimited
Topology
Double Conversion Online
Waveform type
Sine wave
Bypass
Built-in Maintenance Bypass, Built-in Static Bypass
Input
Input frequency
40 – 70 Hz
Input voltage range for main operations
177 – 239 (208V)V
Efficiency at Full Load
93.0 %
Other Input Voltages
220
Input Power Factor at Full Load
0.98
Batteries & Runtime
Battery type
VRLA
Included Battery Modules
5
Typical recharge time
3hour(s)
Replacement Battery
SYBT4
Expected Battery Life (years)
3 – 5
RBC Quantity
5
Battery Volt-Amp-Hour Capacity
12318
Extended Run Options
APC-Smart-UPS-VT-rack-mounted-20kVA-208V-w-ISO-XFMR-w-5-batt-mod-w-PDU-startup
Communications & Management
Interface Port(s)
SmartSlot
Pre-Installed SmartSlot™ Cards
AP9631
Control panel
Multi-function LCD status and control console
Audible Alarm
Audible and visible alarms : configurable delays
Emergency Power Off (EPO)
Optional
Physical
Maximum Height
78.54inches (1995MM, 199.5CM)
Maximum Width
23.62inches (600MM, 60.0CM)
Maximum Depth
42.32inches (1075MM, 107.5CM)
Net Weight
2290.0lbs. (1040.91KG)
Shipping weight
2367.0lbs. (1075.91KG)
Shipping Height
78.54inches (1995MM, 199.5CM)
Shipping Width
23.62inches (600MM, 60.0CM)
Shipping Depth
42.32inches (1075MM, 107.5CM)
Color
Black
Environmental
Operating Temperature
32 – 104 °F (0 – 40 °C)
Operating Relative Humidity
0 – 95 %
Operating Elevation
0-3333ft (0-999.9meters)
Storage Temperature
-50 – 40 °C
Storage Relative Humidity
0 – 95 %
Storage Elevation
0-50000ft (0-15000meters)
Audible noise at 1 meter from surface of unit
58.0dBA
Online thermal dissipation
4238.0BTU/hr
Protection Class
NEMA 1
Conformance
Approvals
cUL Listed, ISO 14001, ISO 9001, UL 1778
