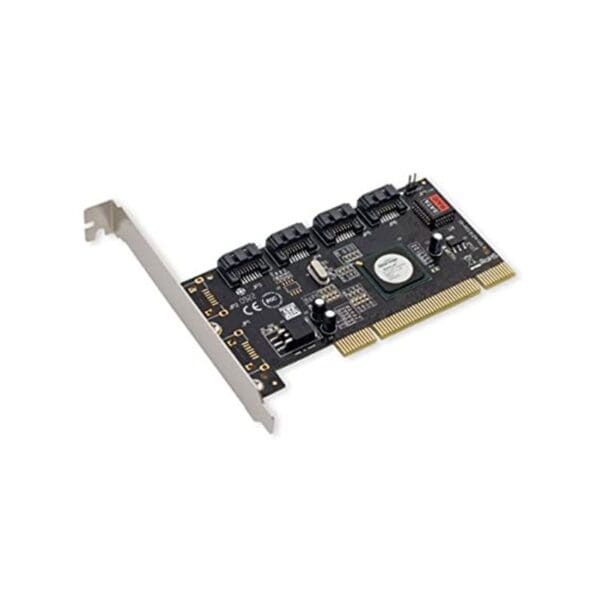

SY-PCI40010 SYBA Multimedia PCI Raid Host Controller Card ATA/300

SY-PCI40010 Technical Specifications

SYBA Multimedia 4 Channels PCI Serial ATA II Raid Host Controller Card Serial ATA/300 PCI Plug-in Card RAID Supported 1, 5, 10, JBOD RAID Level 4 Total SATA Port(s)

Manufacturer Part Number SY-PCI40010
Brand Name SYBA Multimedia
Product Type SATA Controller
Technical Information
Host Interface PCI
Controller Type Serial ATA/300
RAID Supported Yes
RAID Levels 1
5
10
JBOD
Interfaces/Ports
Total Number of SATA Ports 4
Physical Characteristics
Height 5.5″
Width 6.8″
Thickness 1.5″
Form Factor Plug-in Card
Weight (Approximate) 5 oz
Miscellaneous
Platform Supported PC
Mac
Environmentally Friendly Yes
Environmental Certification WEEE
RoHS
