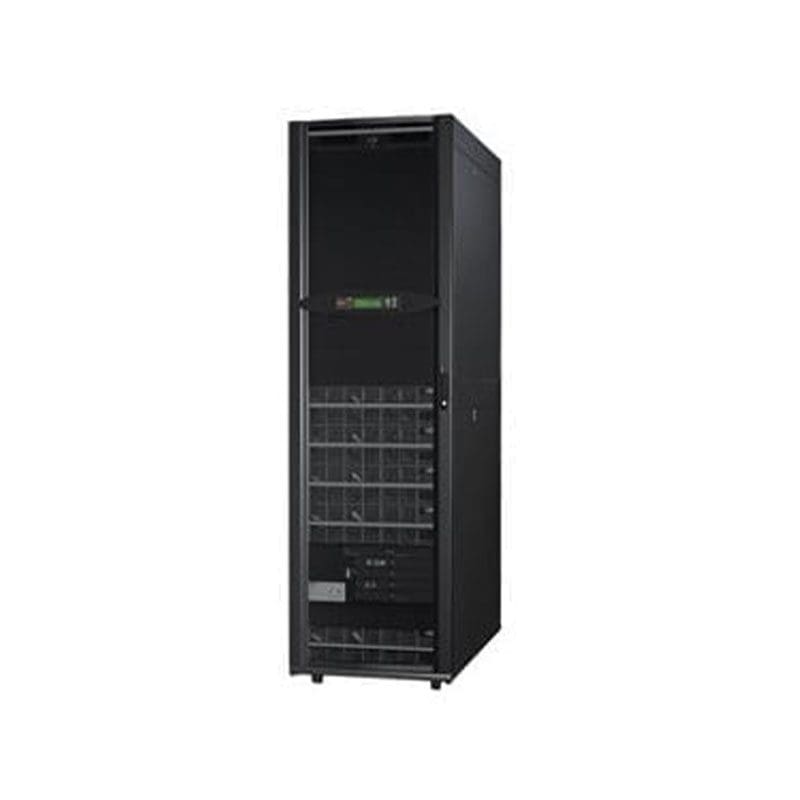

SY40K100F-NB Symmetra PX 40kW Scalable to 100kW

SY40K100F-NB Overview

Symmetra PX 40kW Scalable to 100kW, 208V with Startup, No Battery
A modular, high-efficiency 3-phase UPS that is scalable up to 100kW. Suitable for use in small to medium data centers and high density zones.
Includes: Installation guide, Network Management Card, Start-Up Service, User Manual

Availability: In Stock
SKU:SY40K100F-NB
Brand:

SY40K100F-NB Technical Specifications

Symmetra PX 40kW Scalable to 100kW

Output
Max Configurable Power (Watts)
100.0kWatts / 100.0kVA
Output Voltage Distortion
Less than 2%
Output Frequency (sync to mains)
57 – 63 Hz for 60 Hz nominal
Output Frequency (not synced)
60Hz +/- 0.1% for 60Hz nominal, 50Hz +/- 0.1% for 50Hz nominal
Topology
Double Conversion Online
Waveform type
Sine wave
Output Voltage THD
< 2% for 0 to 100% linear load and < 6% for full non linear load
Output Voltage Tolerance
+/-1% static and +/- 5% at 100% load step
Transfer Time
2ms typical
Bypass
Built-in Static Bypass
Input
Input frequency
40 – 70 Hz
Input voltage range for main operations
177 – 239 (208V)V
Input Power Factor at Full Load
0.99
Batteries & Runtime
Battery type
No internal battery – uses external battery system
Efficiency
View Efficiency Graph
Communications & Management
Interface Port(s)
DB-9 RS-232, SmartSlot
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Available SmartSlot™ Interface Quantity
2
Physical
Maximum Height
79.17inches (2011MM, 201.1CM)
Maximum Width
23.62inches (600MM, 60.0CM)
Maximum Depth
42.13inches (1070MM, 107.0CM)
Net Weight
908.08lbs. (411.9KG)
Shipping weight
1028.46lbs. (466.5KG)
Shipping Height
80.0inches (2032MM, 203.2CM)
Shipping Width
33.39inches (848MM, 84.8CM)
Shipping Depth
45.0inches (1143MM, 114.3CM)
Environmental
Operating Temperature
32 – 104 °F (0 – 40 °C)
Operating Relative Humidity
0 – 95 %
Operating Elevation
0-3333ft (0-999.9meters)
Storage Temperature
-15 – 40 °C
Storage Relative Humidity
0 – 95 %
Storage Elevation
0-50000ft (0-15000meters)
Audible noise at 1 meter from surface of unit
67.0dBA
Protection Class
NEMA 1
