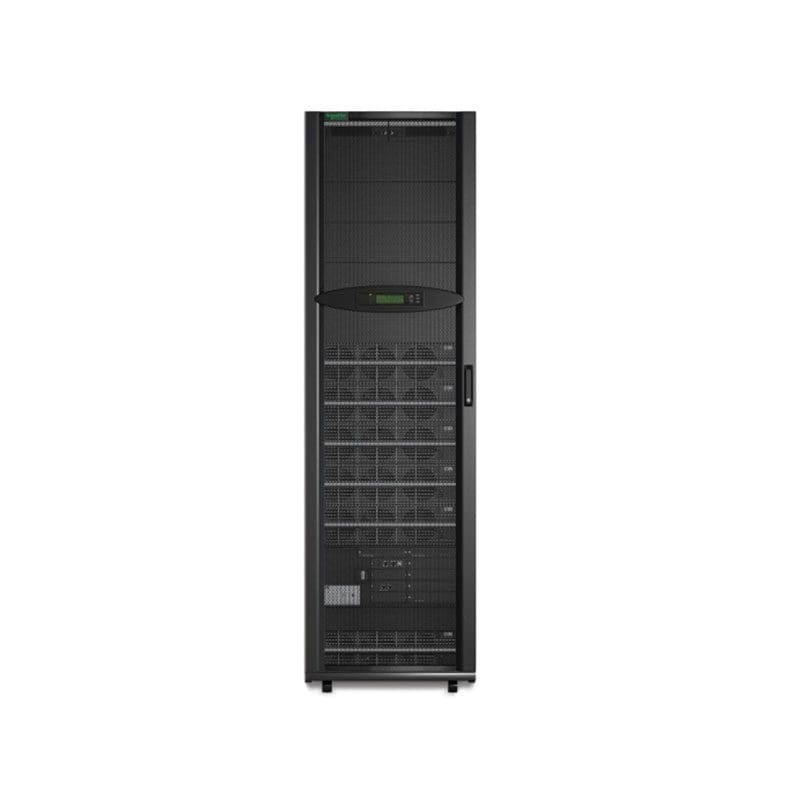

SY50K100F Symmetra PX 50kW Scalable to 100kW

SY50K100F Overview

Symmetra PX 50kW Scalable to 100kW, 208V with Startup
A modular, high-efficiency 3-phase UPS that is scalable up to 100kW. Suitable for use in small to medium data centers and high density zones.
Includes: Installation guide, Network Management Card, Start-Up Service, User Manual

$56,820

Buy Now
Availability: In Stock
SKU:SY50K100F
Brand:

SY50K100F Technical Specifications

Symmetra PX 50kW Scalable to 100kW

Output
Max Configurable Power (Watts)
100.0kWatts / 100.0kVA
Output Voltage Distortion
Less than 2%
Output Frequency (sync to mains)
57 – 63 Hz for 60 Hz nominal
Output Frequency (not synced)
60Hz +/- 0.1% for 60Hz nominal, 50Hz +/- 0.1% for 50Hz nominal
Topology
Double Conversion Online
Waveform type
Sine wave
Output Voltage THD
< 2% for 0 to 100% linear load and < 6% for full non linear load
Output Voltage Tolerance
+/-1% static and +/- 5% at 100% load step
Transfer Time
2ms typical
Bypass
Built-in Static Bypass
Input
Input frequency
40 – 70 Hz
Input voltage range for main operations
177 – 239 (208V)V
Input Total Harmonic Distortion
Less than 5% for full load
Input Power Factor at Full Load
0.99
Batteries & Runtime
Battery type
VRLA
Included Battery Modules
5
Typical recharge time
2hour(s)
Nominal Battery Voltage
+/-192 V (split battery referenced to neutral)
End of Discharge Maximum Battery Current
351.0A
Battery Slots Empty
4
Battery Volt-Amp-Hour Capacity
17280
Extended Run Options
Symmetra-PX-50kW-Scalable-to-100kW-208V-with-Startup
End of Discharge Battery Voltage
+/-154 V
Efficiency in Battery Operation
94.7 %
Maximum Available Short Circuit Current
30kAmps
Runtime
View Runtime Graph
View Runtime Chart
Efficiency
View Efficiency Graph
Communications & Management
Interface Port(s)
DB-9 RS-232, SmartSlot
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Available SmartSlotâ„¢ Interface Quantity
2
Physical
Maximum Height
79.17inches (2011MM, 201.1CM)
Maximum Width
47.24inches (1200MM, 120.0CM)
Maximum Depth
42.13inches (1070MM, 107.0CM)
Net Weight
2828.0lbs. (1285.45KG)
Shipping weight
3112.0lbs. (1414.55KG)
Shipping Height
84.25inches (2140MM, 214.0CM)
Shipping Width
66.77inches (1696MM, 169.6CM)
Shipping Depth
47.64inches (1210MM, 121.0CM)
Color
Black
