TS1GLK72V6H Technical; Specificatoins

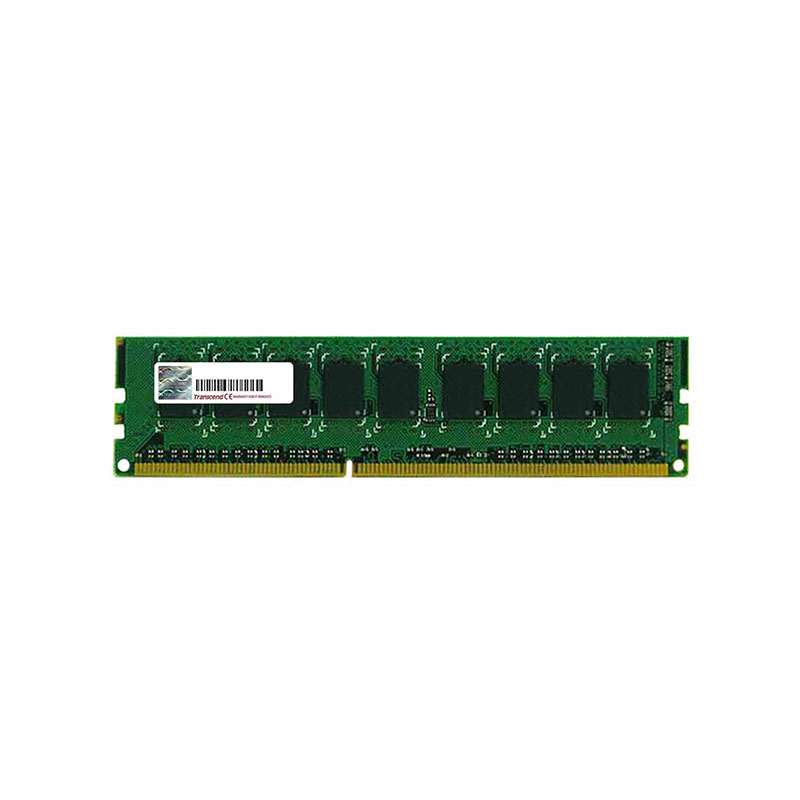

Transcend 8GB PC3-12800 DDR3-1600MHz ECC Unbuffered CL11 240-Pin DIMM Memory Module
Manufacturer : Transcend Information
Manufacture Part Number : TS1GLK72V6H
Capacity : 8 GB
Memory Technology : DDR3 SDRAM
Module Type : 240-Pin DIMM
Clock Frequency : 1600 MHz (PC3-12800)
Data Throughput : 12.8 GB/s
CAS Latency : CL11
Error Correction : ECC (Error Correcting Code)
Buffering Status : Unbuffered (ECC UDIMM)
Rank Configuration : 2Rx8 (Dual Rank)
Voltage : 1.5V Standard
Pin Material : Gold-Plated Interface
DRAM Composition : 512Mx8
Operational Temperature : 0°C to 85°C
System Category : Servers and High-End Workstations
Compliance : JEDEC Standard Specifications
