TS1TMTS952T Technical Specifications

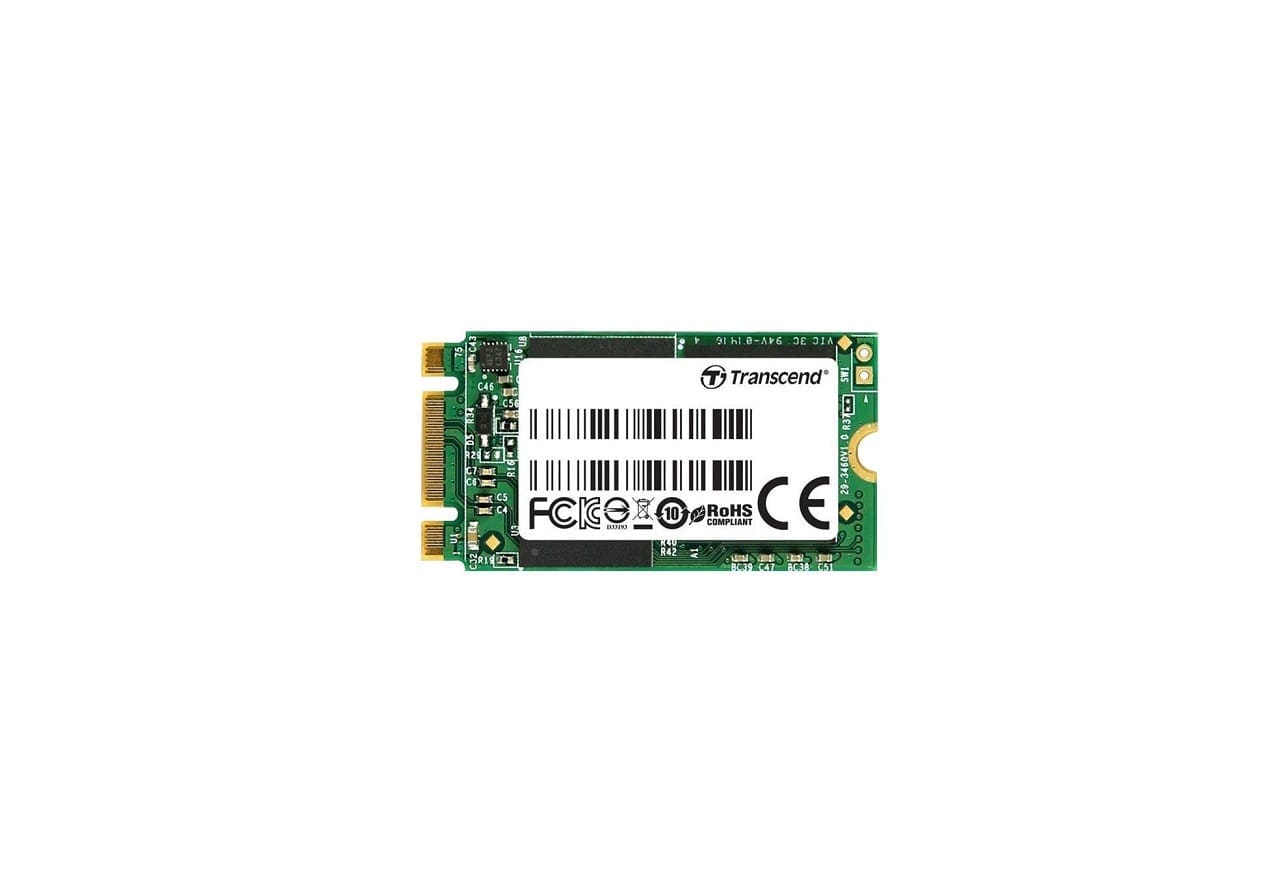

Transcend MTS952T solid state drive 1TB SATA 6Gb/s
Brand :Transcend
Product Line :Transcend
Model :MTS552T
Packaged Quantity :1
Storage
Type :Solid state drive
Hard Drive
Hard Drive Type :Internal hard drive
Form Factor :M.2 2242
Form Factor (metric) :M.2 2242
Form Factor (Short) :M.2
Form Factor (Short) (metric) :M.2
Storage Interface :Serial ATA-600
Interface :Serial ATA-600
Capacity :1 TB
NAND Flash Memory Type :3D triple-level cell (TLC)
Data Transfer Rate :600 MBps
Internal Data Rate :560 MBps
Internal Data Rate (Write) :410 MBps
Maximum 4KB Random Read :55000 IOPS
Maximum 4KB Random Write :75000 IOPS
Drive Writes Per Day (DWPD) :1.61
SSD Endurance :880 TB
Features :3D NAND Technology, Advanced Garbage Collection, Advanced Global Wear Leveling, Block management, DDR3 DRAM Cache, ECC Recovery LDPC, Native Command Queuing (NCQ), TRIM support
Compliant Standards :S.M.A.R.T.
Interface Provided
Interfaces :1 x SATA 6 Gb/s – M.2 Card
Bay Required
Compatible Bay :M.2 2242
Power Consumption
Power Consumption :0.3 Watt (standby), 1.6 Watt (active)
Miscellaneous
MTBF :1,000,000 Hours
Compliant Standards :BSMI, FCC, RoHS2
Dimensions & Weight
Width :0.9 inch
Depth :1.7 inch
Height :0.1 inch
Weight :0.18 ounce
